Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 845
8400 StateLine C | Reference manual
Function library
Function blocks | L_PT1_1

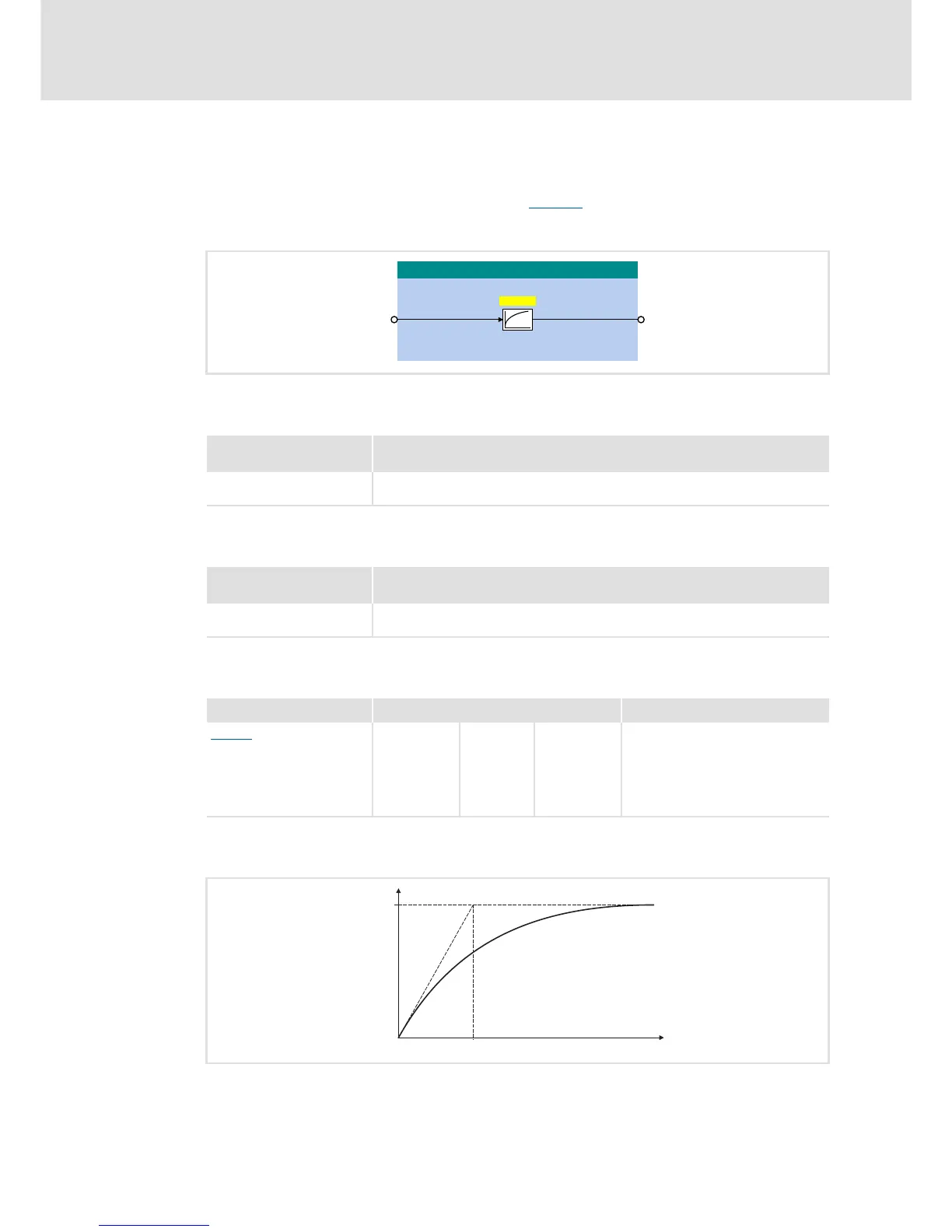

16.1.40 L_PT1_1
This FB filters and delays analog signals.
The filter time constant T can be set under C00249
.
The gain is defined with V
p
= 1.
Inputs
Outputs
Parameter
Function
[16-22] Filter time constant T of the first-order delay element
Identifier
Data type
Information/possible settings
nIn_a
INT
Input signal
Identifier
Data type
Value/meaning
nOut
INT
Output signal
Parameter Possible settings Info
C00249
0 ms 5000 Filter time constant
• The filter is not active with a
setting of "0 ms". The input signal
is passed through one-to-one to
the output.
• Lenze setting: 2000 ms
