8400 StateLine C | Reference manual
System bus "CAN on board"
Process data transfer
456 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
Finally, the following parameters define the value that the process data words are to have
when they are decoupled:

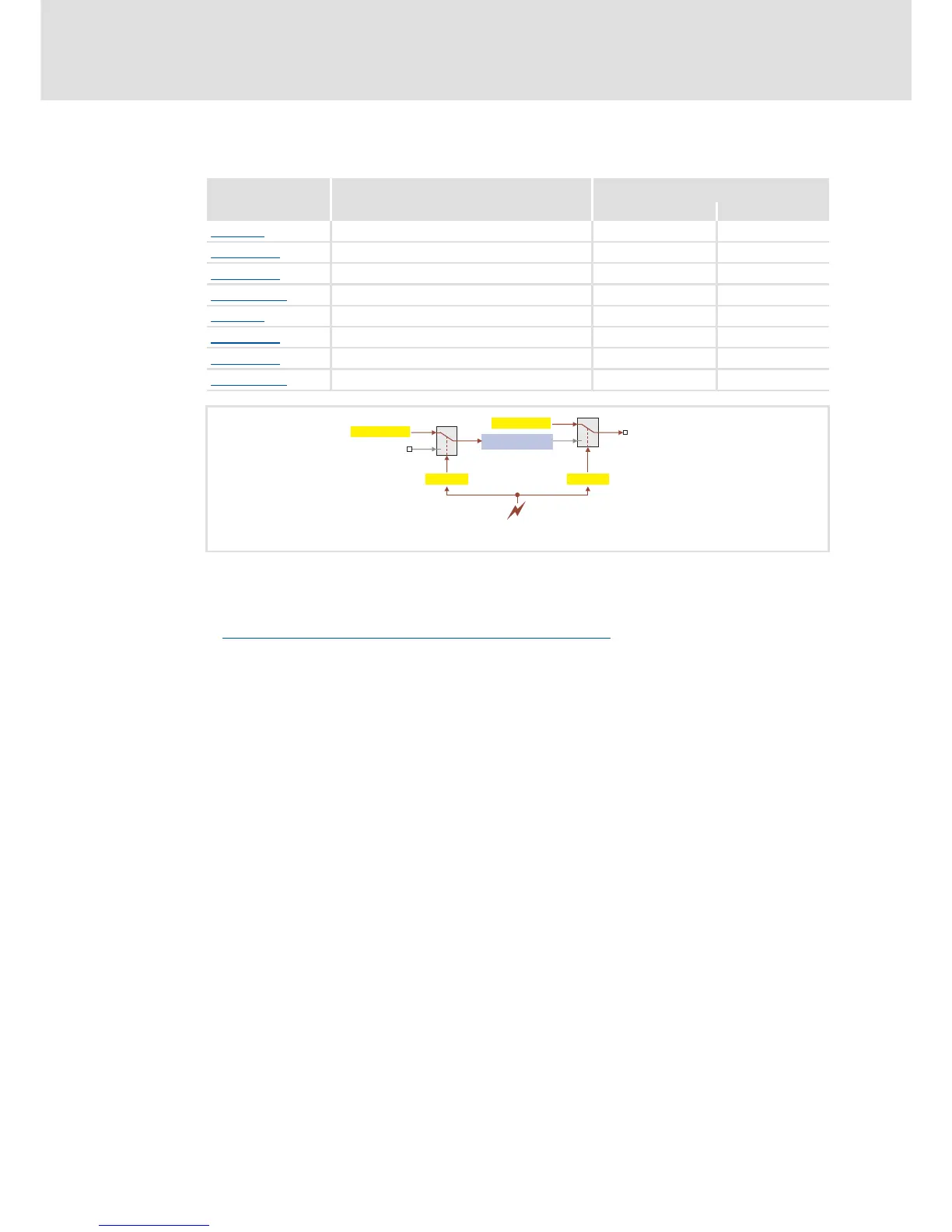

[10-7] General signal flow in the event of a configured exception
Related topics:
Configuring exception handling of the output terminals
( 281)
Parameter Info Lenze setting
Value Unit
C00343/1 LP_CanIn1:wCtrl DiscVal 0
C00343/2...4
LP_CanIn1:wIn2...wIn4 DiscVal 0
C00343/5...8
LP_CanIn2:wIn1...wIn4 DiscVal 0
C00343/9...12
LP_CanIn3:wIn1...wIn4 DiscVal 0
C00344/1
LP_CanOut1:wState DiscVal 0
C00344/2...4
LP_CanOut1:wOut2...wOut4 DiscVal 0
C00344/5...8
LP_CanOut2:wOut1...wOut4 DiscVal 0
C00344/9...12
LP_CanOut3:wOut1...wOut4 DiscVal 0
n Exception event (an error has occurred)
