Introduction: Parameterising the controller
Selection of the appropriate commissioning tool
32 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

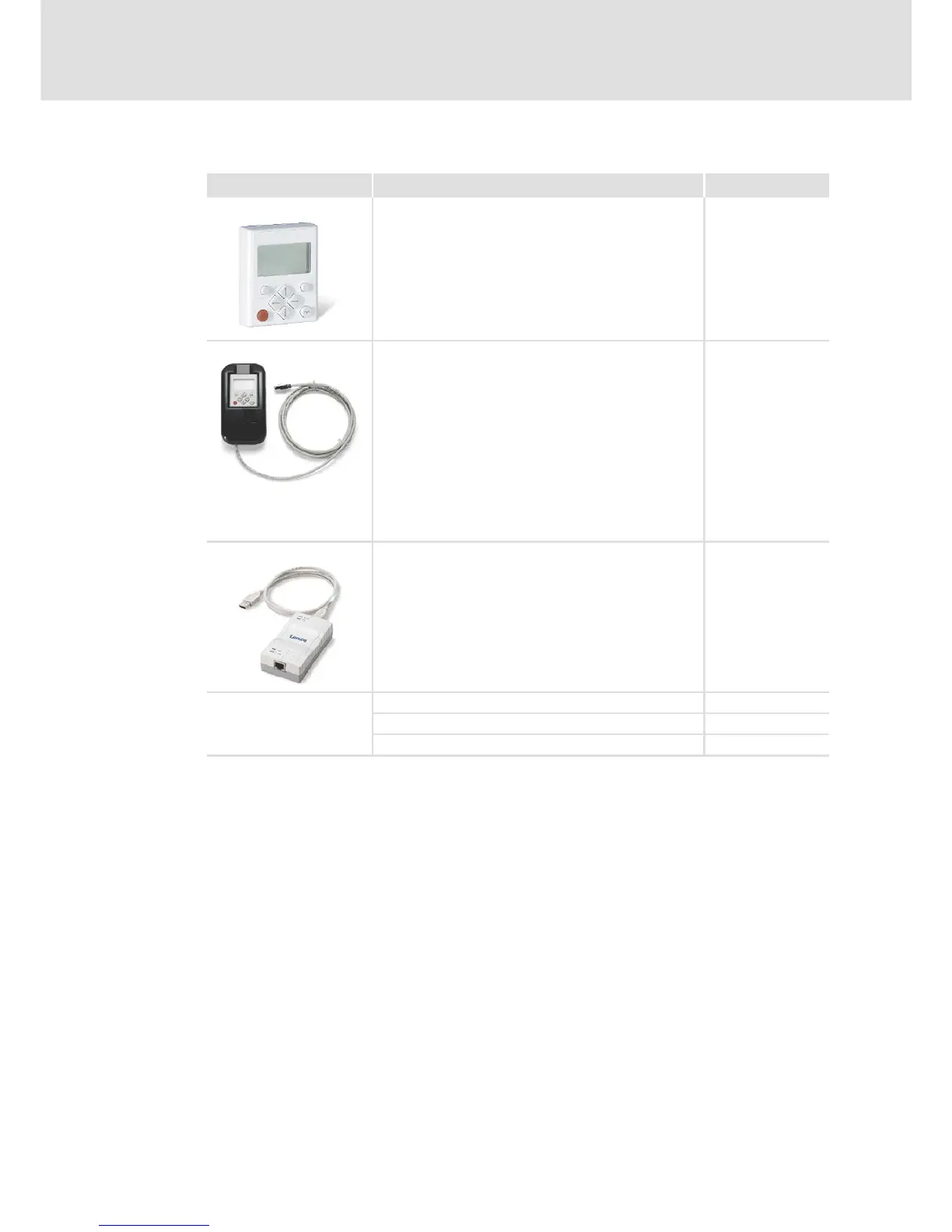

2.2.1 Overview: Accessories for commissioning
Version Features Product key
Keypad X400 Quick access to parameters and operating data
• Hot-pluggable
• Graphic display with plain texts
• Backlighting
• Easy user guidance
• 4 navigation keys, 2 context-sensitive keys
•Adjustable RUN/STOP function
• Can be used for L-force Inverter Drives 8400 and Servo
Drives 9400
EZAEBK1001
Diagnosis terminal X400 Keypad X400 in robust housing, also suitable for installation
in the control cabinet door.
• Hot-pluggable
• Graphic display with plain texts
• Backlighting
• Easy user guidance
• 4 navigation keys, 2 context-sensitive keys
•Adjustable RUN/STOP function
•incl. 2.5 m cable
• Enclosure IP20, in case of front installation in control
cabinet IP65
• Can be used for L-force Inverter Drives 8400 and Servo
Drives 9400
EZAEBK2001
USB diagnostic adapter For isolated connection of your PC with the controller.
• Hot-pluggable
• Diagnostic LED for data transfer display
• plug and play
• Input-side voltage supply via USB connection from PC
• Output-side voltage supply via the diagnostic interface of
the controller
• Connecting cable can be selected in different lengths:
E94AZCUS
Connecting cable for
USB diagnostic adapter
2.5 m length EWL0070
5 m length EWL0071
10 m length EWL0072
