Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 727
8400 StateLine C | Reference manual
Working with the FB Editor
User interface
15.2 User interface
How to access the FB Editor:
1. Go to Project View and select the 8400 controller.
2. Go to Workspace and select the FB Editor tab.
The FB Editor displays the wiring of the technology function selected in C00005
.
The interconnection of the I/Os of the controller depend on the control mode
selected in C00007
.

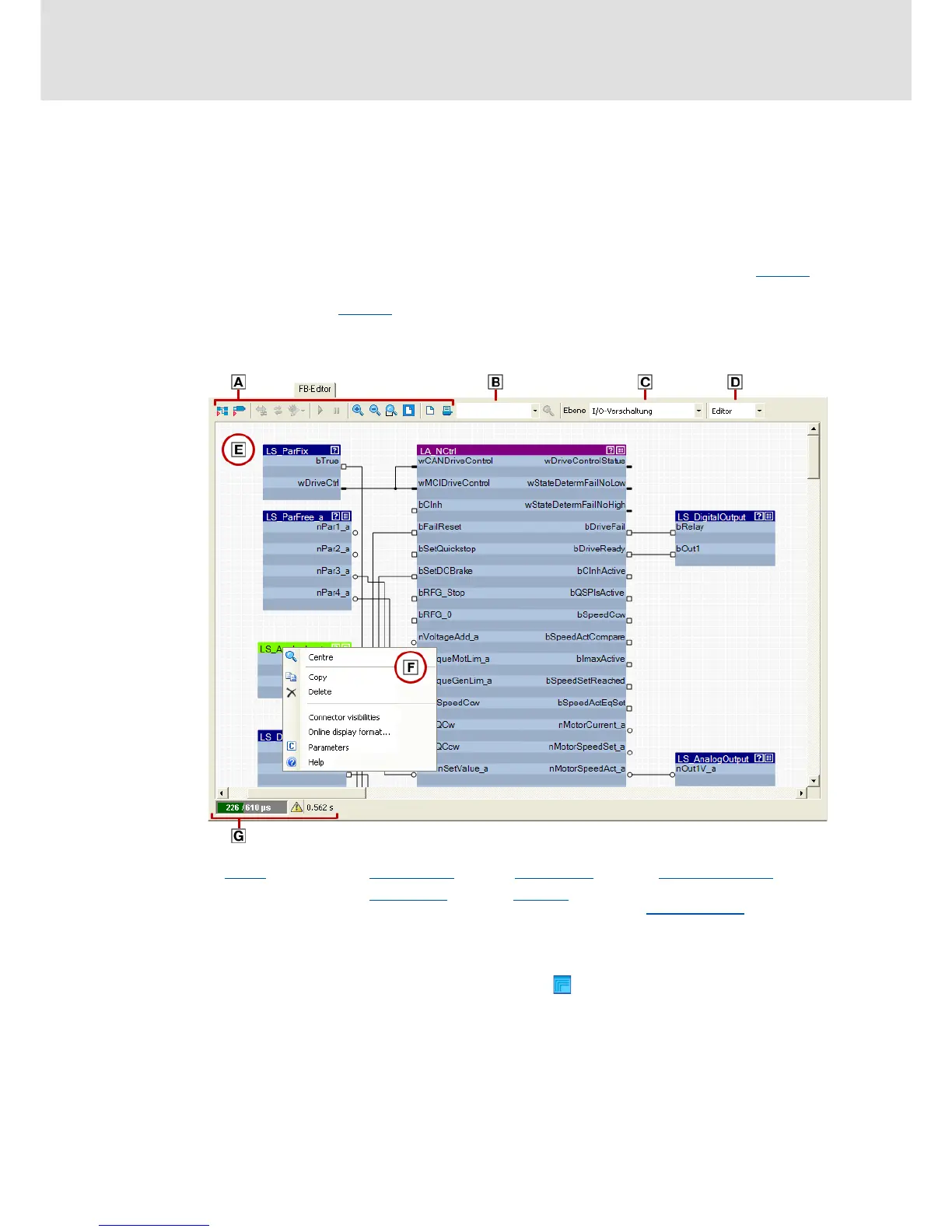

The user interface of the FB Editor includes the following control and function elements:
Tip!
Go to the »Engineer« toolbar and click the icon to hide the Project View and the
Message Window. This increases the Workspace available for the FB Editor. A
renewed click on the symbol shows the Project View and the Message Window
again.
Toolbar Search function Level selection Editor view/overview
Drawing area Context menu Status bar Not shown:
Overview window
