Working with the FB Editor
User interface
732 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
"Free interconnection" level
This level serves to implement an individual drive solution for the "HighLine" version.
15.2.4 Editor view/overview

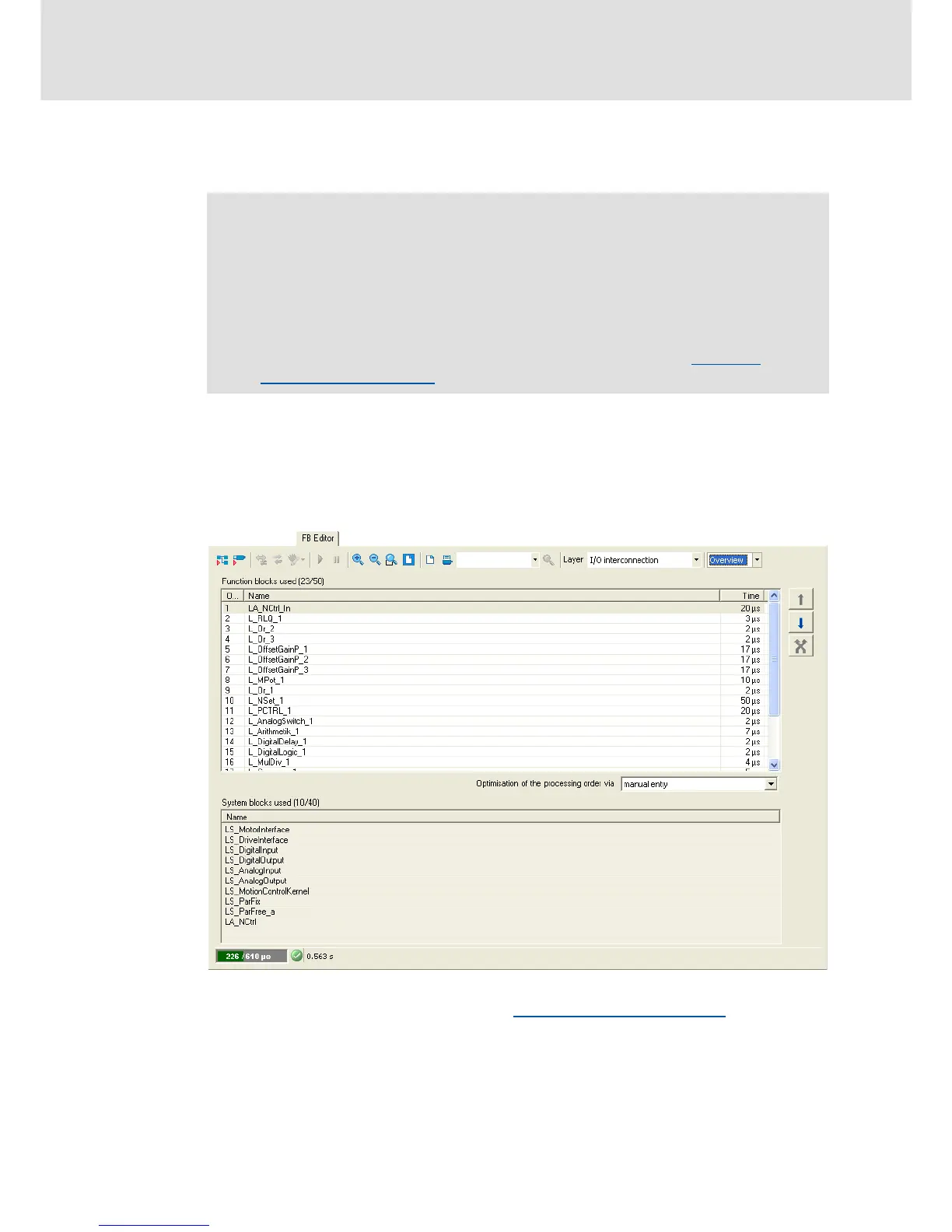

Use the list field at the top right to change from the Editor to the overview and vice versa.
The overview shows all function blocks used of the interconnection in the upper list field
in the order of their processing. The lower list field shows all used system blocks.
The processing order of the function blocks can be optimised manually or according to
an automatically generated selection. Changing the processing order
( 759)
Note!
When you select the "Free interconnection" level for the first time, you are
prompted to confirm whether the interconnection from the I/O level and the
application level are to be combined and copied into this level.
When you confirm this confirmation prompt with Yes, the I/O level and the
application level are not available anymore. This action can only be undone by
resetting the application to a predefined Lenze application! Resetting
changed interconnection ( 764)
