Lenze 8400 StateLine C

Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 303
8400 StateLine C | Reference manual
Technology applications
TA "Actuating drive speed"

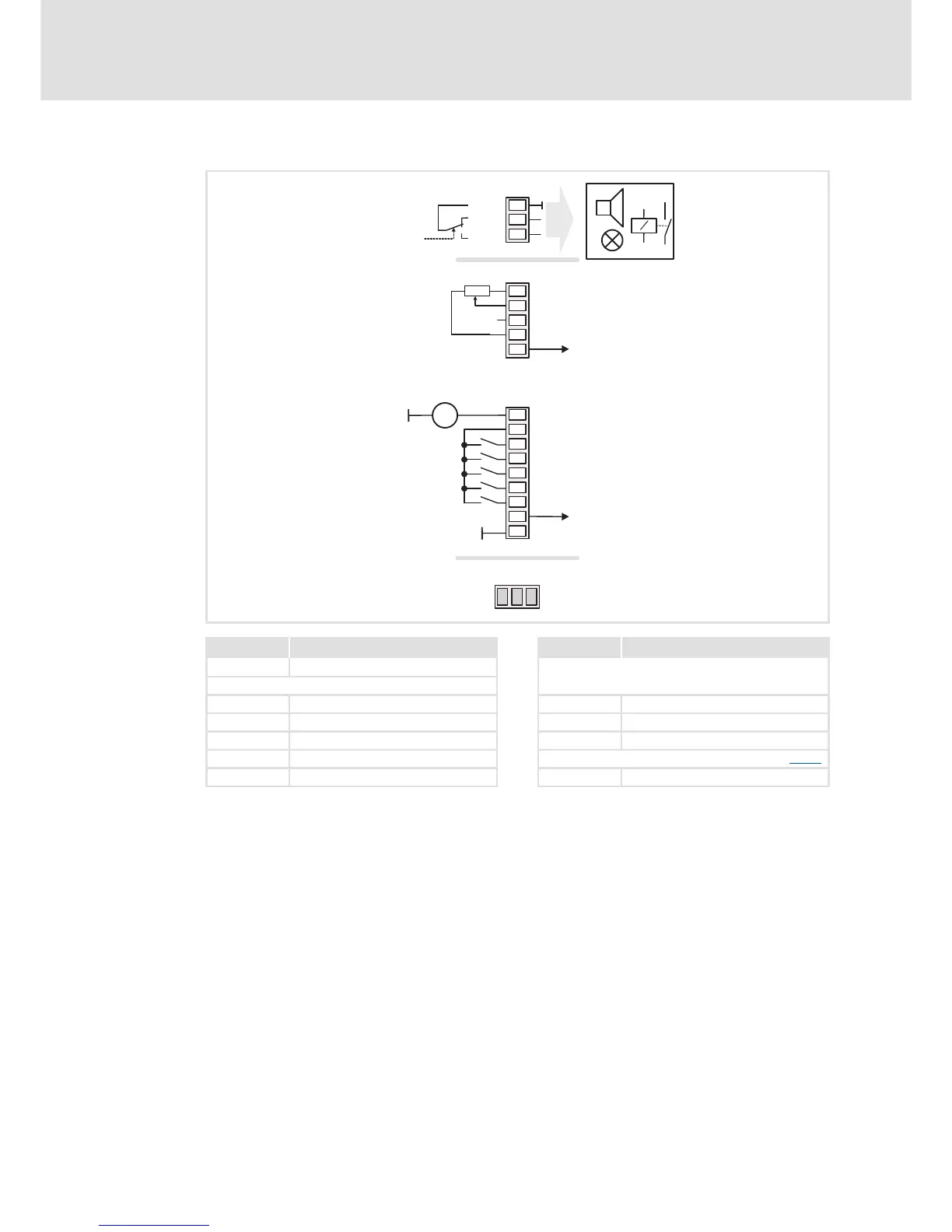

7.2.3.1 Terminals 0
Connection Assignment Connection Assignment
X101/NC-NO LA_NCtrl.bDriveFail
X4/RFR LA_NCtrl.bFailReset X3/A1U LA_NCtrl.nMainSetValue_a *
X4/DI1 LA_NCtrl.bJogSpeed1 X3/A1I -
X4/DI2 LA_NCtrl.bJogSpeed2 X3/O1U LA_NCtrl.nMotorSpeedAct_a *
X4/DI3 LA_NCtrl.bSetDCBrake * 10 V ≡ 100 % reference speed (C00011
)
X4/DI4 LA_NCtrl.bSetSpeedCcw X4/DO1 LA_NCtrl.bDriveReady
X4
COM
CG
NC
CL
NO
CH
X3
DI3
DI2
DI4
DO1
GIO
24I
DI1
RFR
AR
A1U
GA
O1U
A1I
X101
X1
24E
+
=
DriveReady
Controller enable / reset error
External
supply
24 V DC
Fixed setpoint 1/3
Fixed setpoint 2/3
DC brake
Change of direction of rotation
Actual speed value
Speed setpoint
DriveFail
