Function blocks | L_NSet_1
16.1.29 L_NSet_1

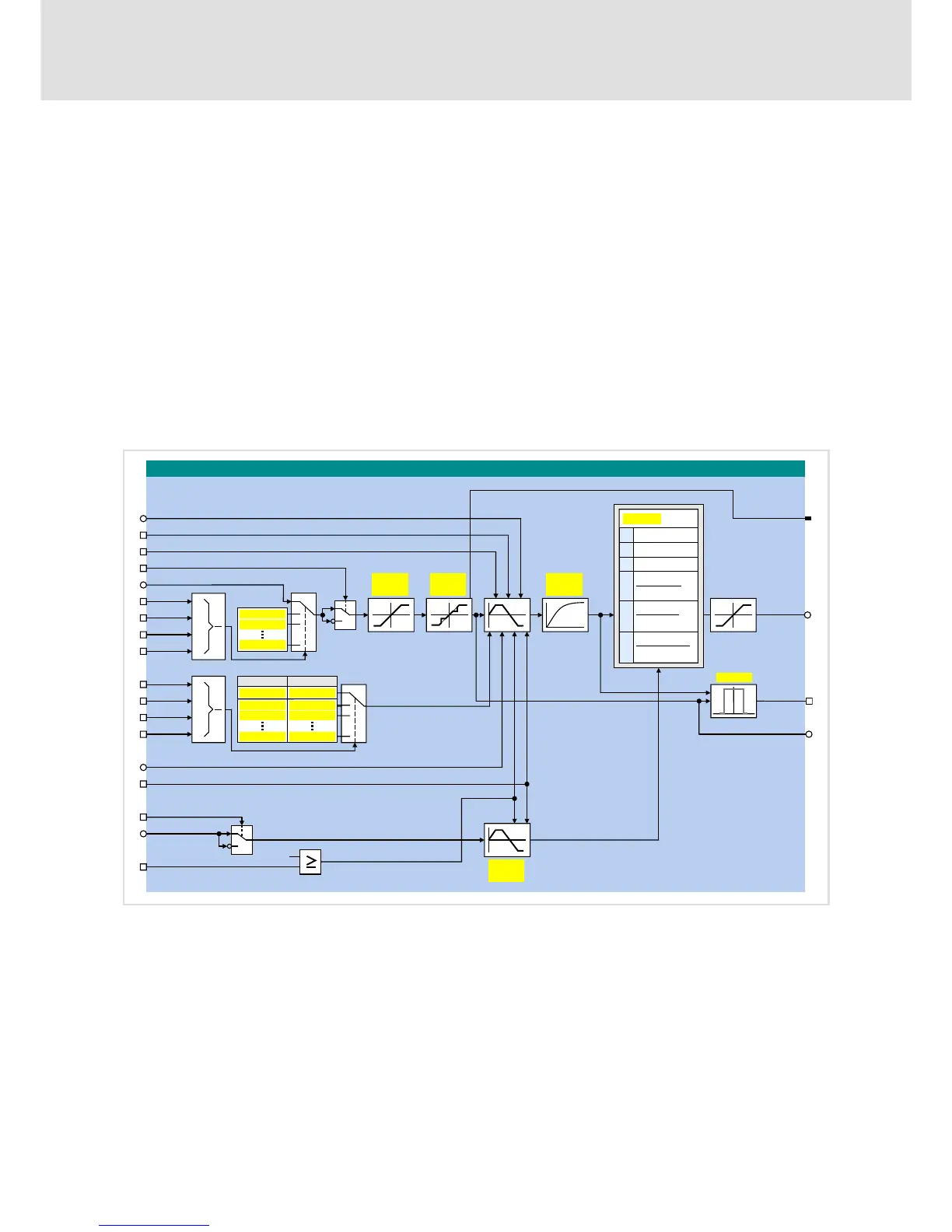

This FB is used for general signal processing of process values and is provided with the
following functions:
Ramp function generator
– With linear ramps for main and additional setpoint path
– With S-shaped ramp (PT1 rounding)
– Setting and holding
Internal limitation of the input signal
3 adjustable blocking zones
Arithmetic function
15 fixed setpoints (JOG setpoints)
15 acceleration and deceleration times
