8400 StateLine C | Reference manual
Function library
Function blocks | L_Negation_1
814 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
16.1.25 L_Negation_1

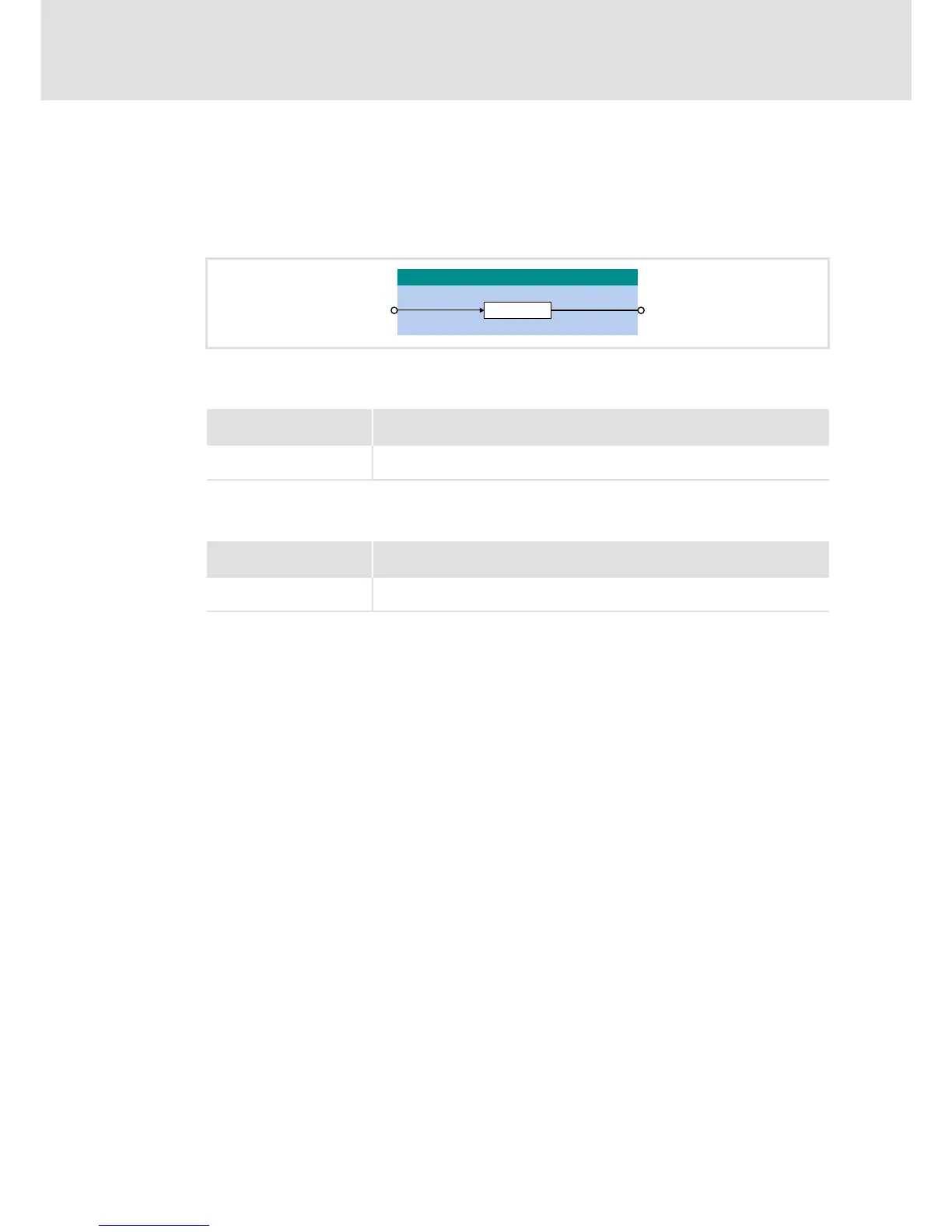

This FB converts the sign of the input signal, i.e. the input signal is multiplied by the value
-1 and is then output.
With the value - 32768 at the nIn_a input, the value + 32767 is provided at the nOut_a
output.
Inputs
Outputs
Identifier
Data type
Value/meaning
nIn_a
INT
Input signal
Identifier
Data type
Value/meaning
nOut_a
INT
Output signal
