8400 StateLine C | Reference manual
Function library
System blocks | LS_ParFix
864 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

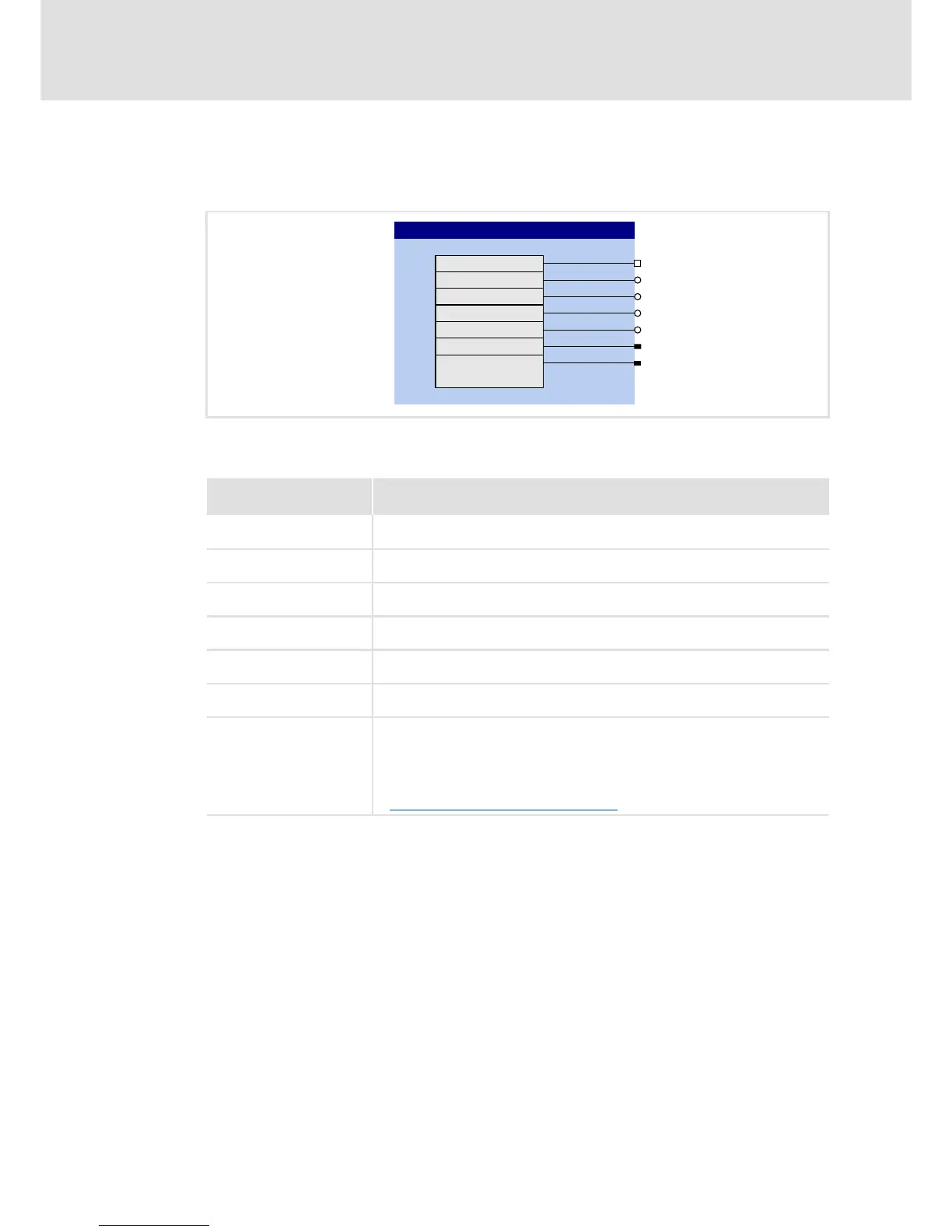

16.2.14 LS_ParFix
This system block outputs various fixed values (constants) to be used in the
interconnection.
Outputs
Identifier
Data type
Value/meaning
bTrue
BOOL
1 ≡ TRUE
nPos100_a
INT
16384 ≡ + 100 %
nNeg100_a
INT
-16384 ≡ - 100 %
nPos199_99_a
INT
32767 ≡ + 199.99 %
nNeg199_99_a
INT
-32767 ≡ - 199.99 %
w65535
WORD
65535 ≡ 0xFFFF
wDriveCtrl
WORD
9 ≡ 0x0009
• Bit 0, SwitchOn = TRUE
• Bit 3, EnableOperation = TRUE
• All others: FALSE
See also:
wCANControl/wMCIControl control words
( 103)
