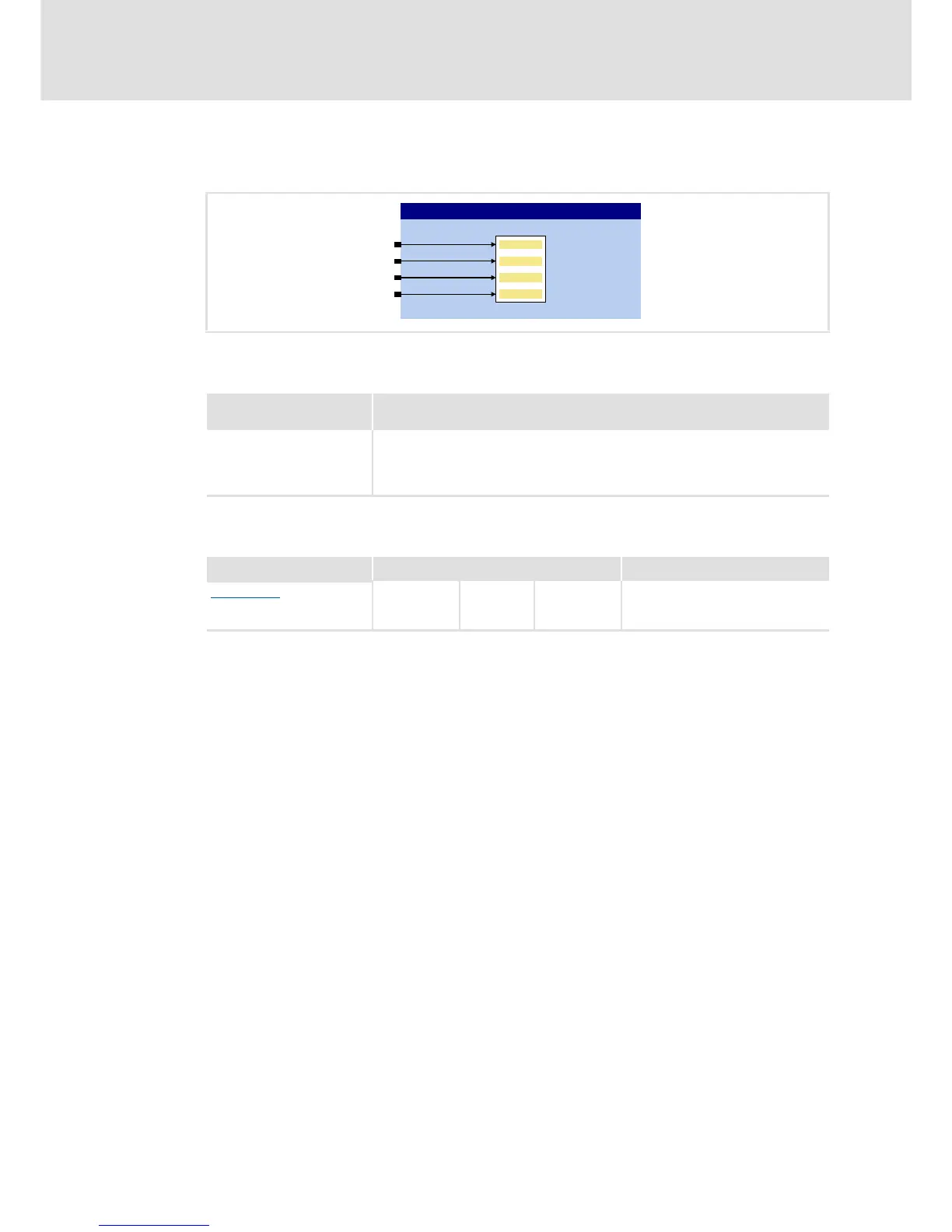

16.2.7 LS_DisFree
This system block displays any four 16-bit signals of the application on display codes.
Inputs
Parameter
Identifier
Data type
Information/possible settings
wDis1 ... wDis4
WORD
From version 11.00.00:
wC481_1 ... wC481_4_a
Inputs for any 16-bit signal of the application
Note: From version 11.00.00 the inputs are named according to the display
parameter for an easier allocation.
Parameter Possible settings Info
C00481/1...4
0x0000 0xFFFF Display of the 16-bit signals which
are applied at the wDis1 ... wDis4
inputs
Z'LV
Z'LV
Z'LV
Z'LV
&
&
&
&
/6B'LV)UHH
