Working with the FB Editor
Using the FB Editor as "Viewer"
15.3.1 Following connections of inputs and outputs
In addition to the Search function
you can use the context menu of inputs and outputs to
follow connections and quickly reach certain signals.
How to navigate from one output to another connected input:

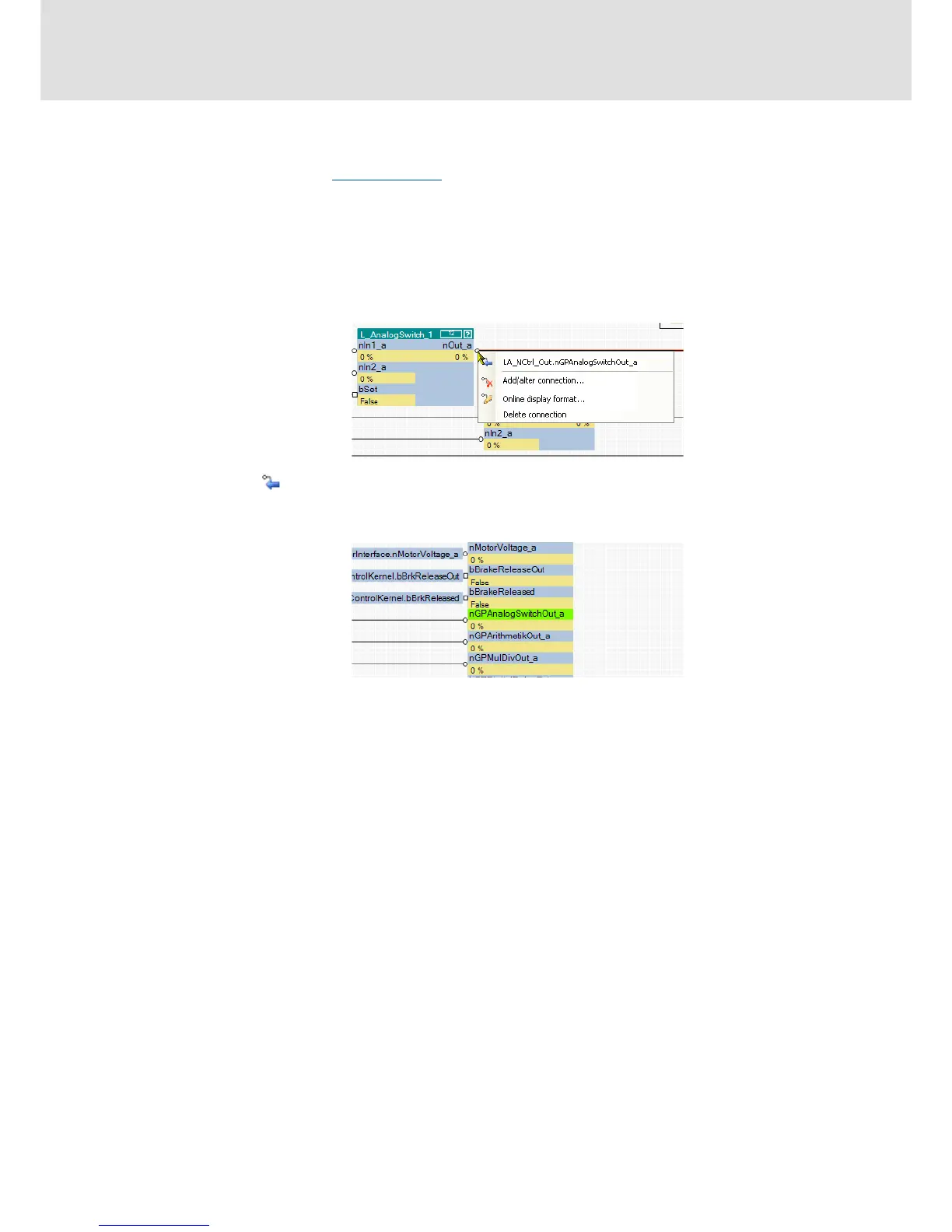

1. Open the context menu (right mouse button) of the port symbol at the output.
•The context menu for the port symbol contains all inputs which are connected
to the output:
2. Select input in the context menu to which you want to navigate.
• As a result, the selected input is displayed in the centre of the drawing area (in
this example: nGPAnalogSwitchOut_a):
