8400 StateLine C | Reference manual
I/O terminals
Digital terminals
258 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

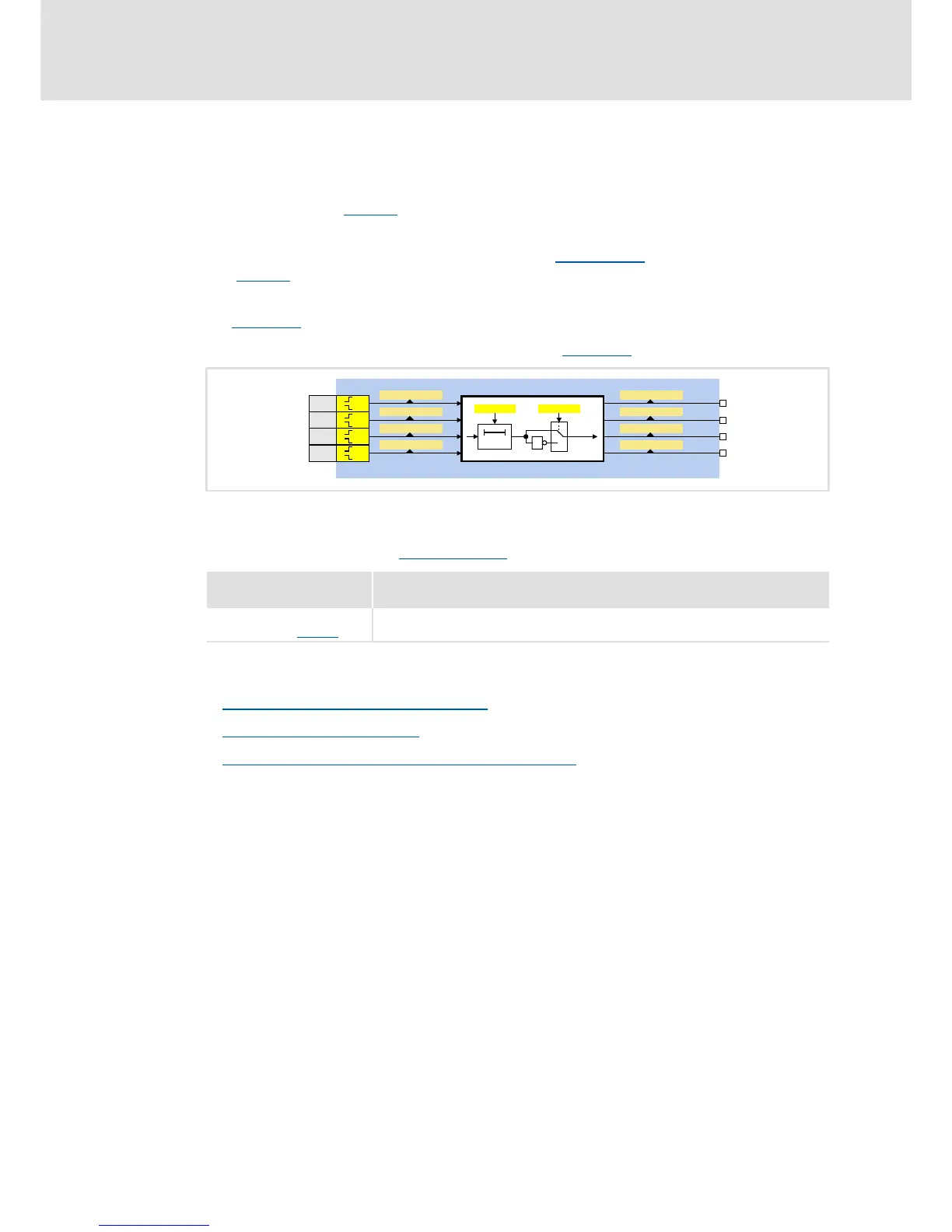

6.1.1.1 Using DI1 and DI2 as digital inputs
Function assignment 0: DI1=In1 / DI2=In2
With this setting in C00115
, the digital input terminals have been configured as "normal"
digital inputs.
It is possible to set individual debounce times (C02830/1...4
) and terminal polarities
(C00114
) for each digital input.
The current terminal level at the input of the internal processing function is shown in
C00443/1
in bit-coded form.
The output level for the application is shown in C00443/2
in bit-coded form.
Internal interfaces to the application
Relevant outputs at the LS_DigitalInput
system block:
Related topics:
Using DI1 and DI2 as frequency inputs
( 259)
Using DI1 as a counter input
( 263)
Internal interfaces | System block "LS_DigitalInput"
( 266)
Output
DIS code | data type
Value/meaning
bIn1 ... bIn4
C00443/2 | BOOL
Digital input DI1 ... DI4
