8400 StateLine C | Reference manual
Motor control (MCTRL)
Braking operation/brake energy management
224 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
Tip!
In C00175
, a ramp function generator stop (FB L_NSet_1) can be set for instances
when the brake resistor is controlled. This prevents overvoltage deactivation in the
case of short deceleration times.
Selecting the response to an increase of the DC-bus voltage
( 226)

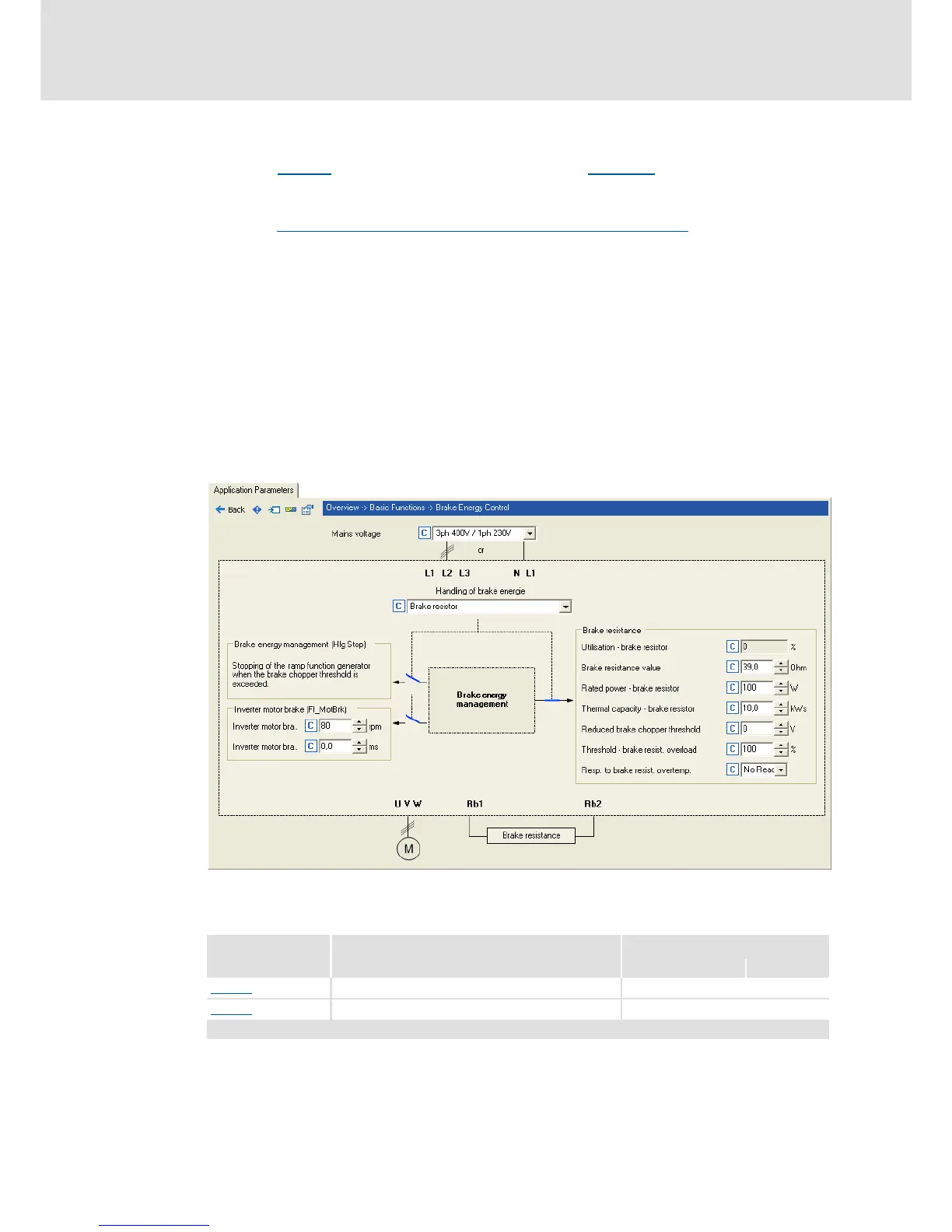

Proceed as follows to open the dialog for parameterising the brake energy
management:
1. »Engineer« Go to the Project view and select the 8400 StateLine controller.
2. Go to Workspace and change to the Application parameters tab.
3. Go to the Overview dialog level and click the "basic functions" button.
4. Go to the Overview basic functions dialog box and click the Brake energy
management button.
Short overview of the relevant parameters:
Parameter Info Lenze setting
Value Unit
C00173 Mains voltage 3ph 400 V / 1ph 230 V
C00175
Brake energy management R_Brake (brake resistance)
Highlighted in grey = display parameter
