I/O terminals
Digital terminals

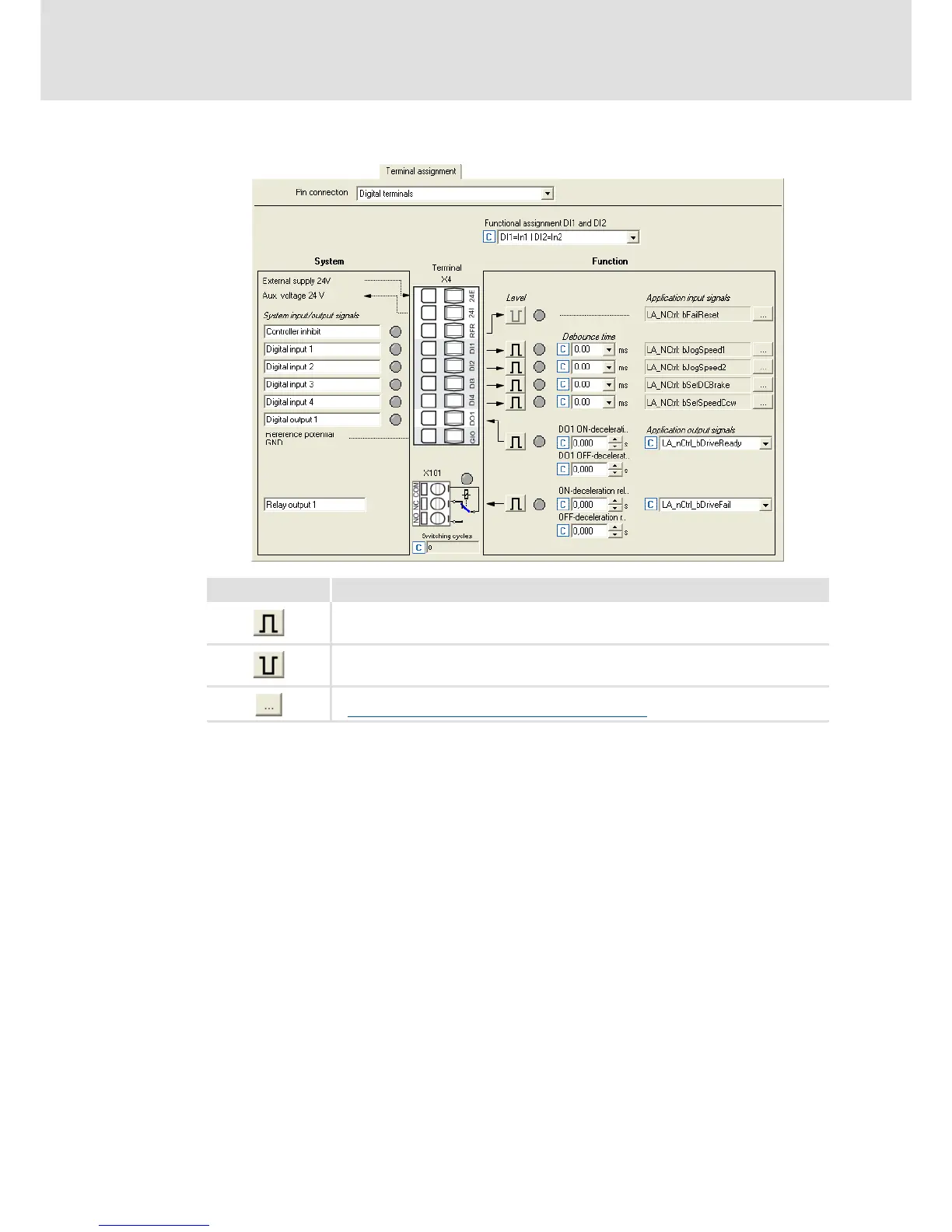

Parameterisation dialog in the »Engineer«:
Button Function
Indicates the polarity of the input is HIGH active.
The polarity can be changed from HIGH active to LOW active by clicking this button.
Indicates that the polarity of the input is LOW active.
The polarity can be changed from LOW active to HIGH active by clicking this button.
Open the parameterising dialog for assigning application inputs to the digital input.
Changing the terminal assignment with the »Engineer«
( 286)
