Technology applications
TA "Actuating drive speed"
[7-3] "GeneralPurpose" functions (continuation)
Free inputs and outputs
These inputs can be freely interconnected in the application level. They can be used to
transfer signals from the I/O level to the application level and vice versa.
[7-4] Free inputs/outputs
Related topics:
User-defined terminal assignment
( 282)
"GeneralPurpose" functions
( 346)

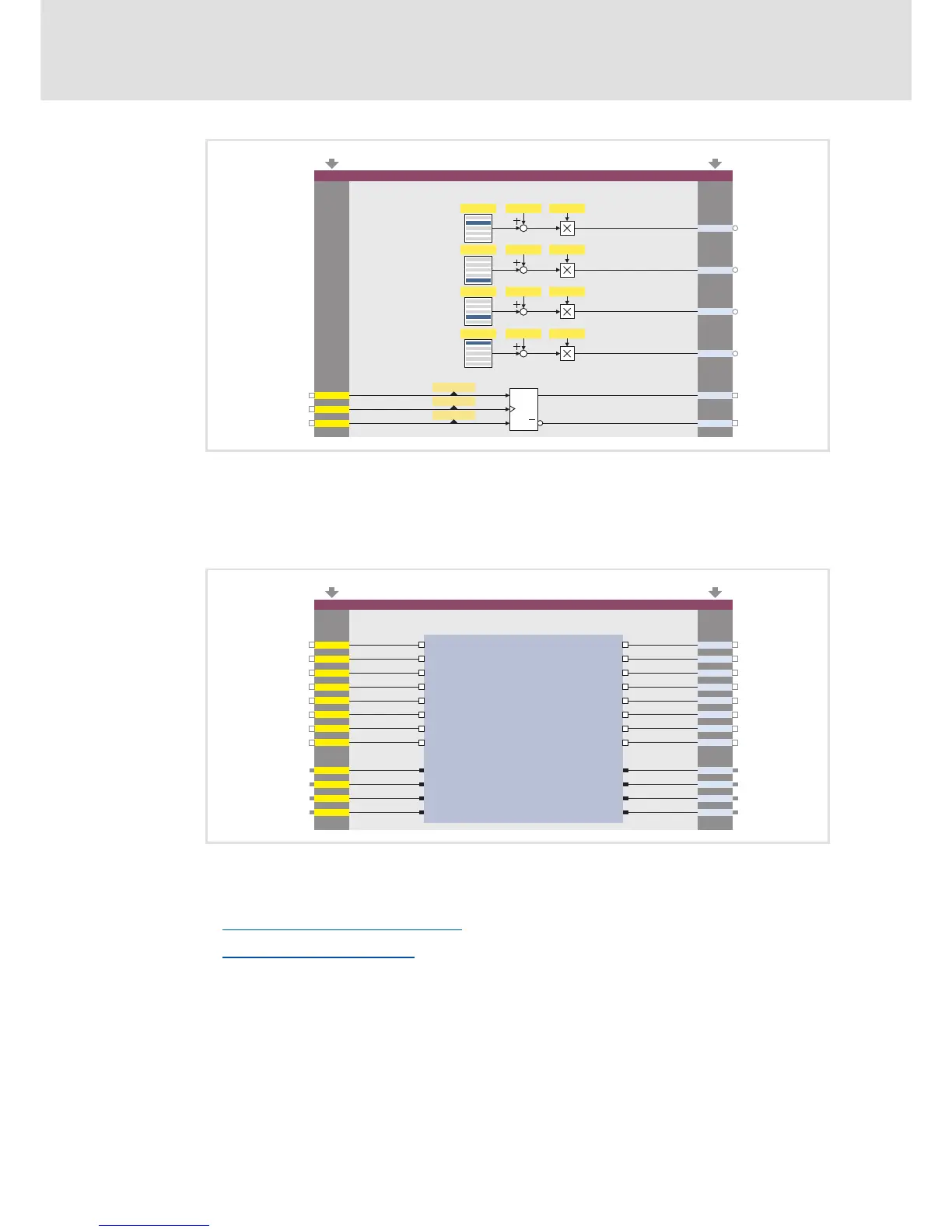

bGPDFlipFlop_NegOut
bGPDFlipFlopOutbGPDFlipFlop_InD
bGPDFlipFlop_InClk
bGPDFlipFlop_InClr
C1
Q
Q
1D
R
C00833/4
C00833/5
C00833/6
LA_NCtrl
Configuration parameters Entry in select list
C701/28
C701/29
C701/30
1022
1023
GeneralPurpose (GP) functions
nGPSignalOut1_a
C00410/1 C00413/2C00413/1
nGPSignalOut2_a
C00410/2 C00413/4C00413/3
nGPSignalOut3_a
C00410/3 C00413/6C00413/5
nGPSignalOut4_a
C00410/4 C00413/8C00413/7
1009
1010
1011
1012
bFreeOut1
bFreeOut2
bFreeOut3
bFreeOut4
bFreeOut5
bFreeOut6
bFreeOut7
bFreeOut8
wFreeOut1
wFreeOut2
wFreeOut3
wFreeOut4
bFreeIn1
bFreeIn2
bFreeIn3
LA_NCtrl
Configuration parameters Entry in select list
C701/41
C701/42
C701/43
1029
1030
1031
1032
1033
1034
1035
1036
1023
1024
1025
1026
Free In/Out
bFreeIn4
bFreeIn5
bFreeIn6
C701/44
C701/45
C701/46
bFreeIn7
bFreeIn8
C701/47
C701/48
wFreeIn1
wFreeIn2
C700/26
C700/27
wFreeIn3
wFreeIn4
C700/28
C700/29
