Chapter 5 System Operation
890 USE 120 00 97
Front Panel Controls and Indicators, continued

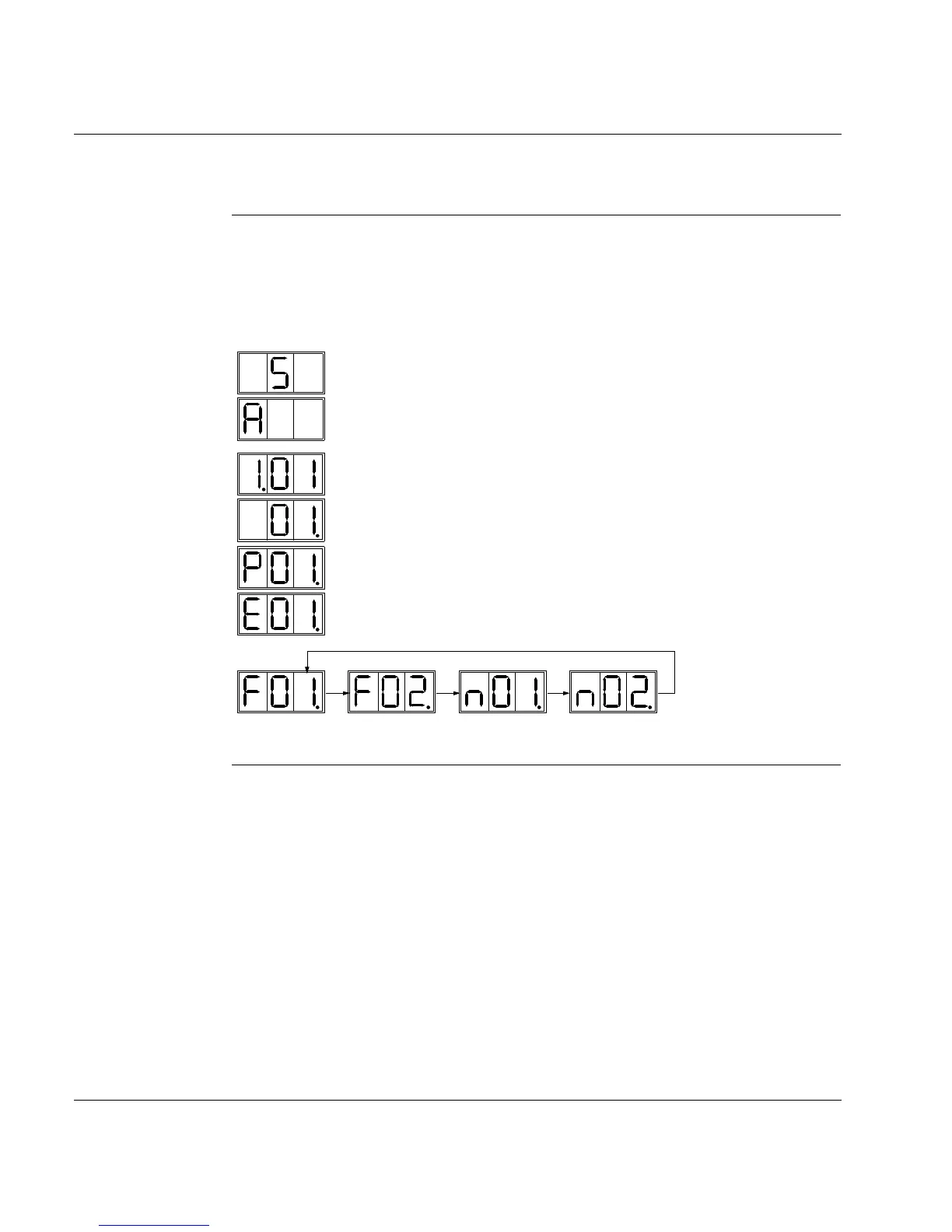

LED Display The alphanumeric display indicates drive power status conditions, error codes and
warning codes. The power status conditions are shown below; error and warning
codes are described in the pages that follow.
Status 1 : 24 Vdc switched on. Displays the firmware version then after 1 second
displays Status 2, 3 or 4.
Status 2 : 24 Vdc switched on. Displays the continuous current rating of the drive;
in this case, 1A. (Dot will be flashing.)
Status 3 : 24 Vdc and main supply switched on but drive is disabled.
(Dot will be flashing.)
Status 4 : 24 Vdc and main supply switched on but drive is enabled.
(Dot will be flashing.)
Option -AS- is active
Reset input active
The “Reset” function is assigned to a digital input where a High signal is connected
fault / warning signal:
each error / warning that
has occured will be
indicated successively for
4 blinks each.
1s 1s 1s 1s
