19
The 17D Series Servo Drive Family, continued
17D Drive Family
Portrait

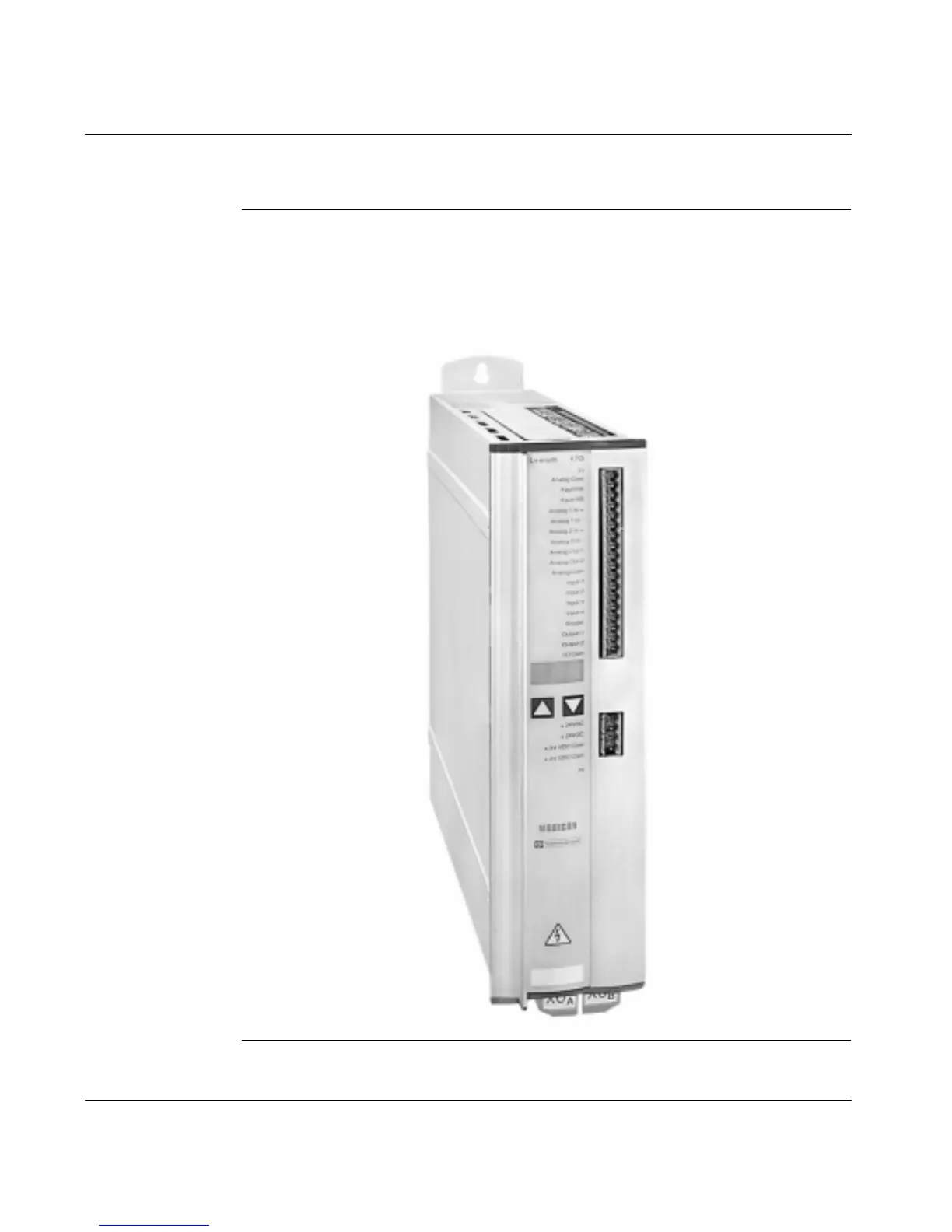

The following photograph shows a representative member of the 17D drive family.
The complete family consists of five models partitioned into two physical sizes.
Models MHDA1004
•00, MHDA1008•00, MHDA1017•00 and MHDA1028•00
have dimensionally identical physical housings while Model MHDA1056
•00 has a
wider housing. (See Chapter 3 for detailed dimensional information.)
Continued on next page
Model without AS function
