LEXIUM MHDA1004 - Signal Wiring

60
Signal Wiring
Lexium BPH
Resolver
Connection
(excluded
BPH055)

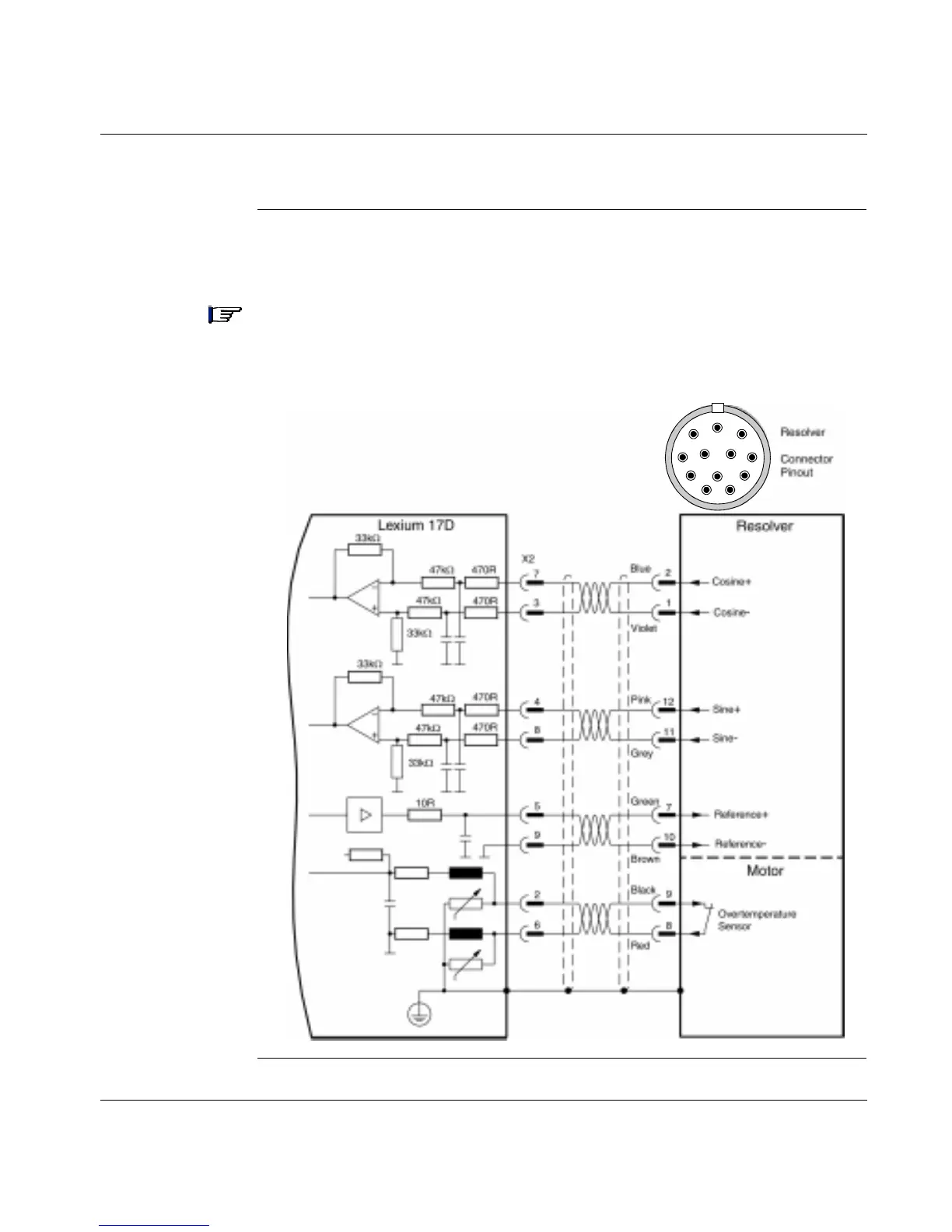

The following diagram shows the connections between the resolver and the 17D
drive.
Note: The standard Lexium BPH series servo motors are equipped with two-pole,
integral resolvers. The thermistor contact in the servo motor is connected via the
resolver cable to the 17D drive.
Continued on next page
1210
11
1
9
8
7
6
5
4
3
2
P
