LEXIUM MHDA1004 - MOT 201 Encoder Wiring Diagram: Option 1

141
Wiring a 17D Drive to a MOT 201 Motion Module, continued
MOT 201
Encoder Wiring
Diagram:
Option 1

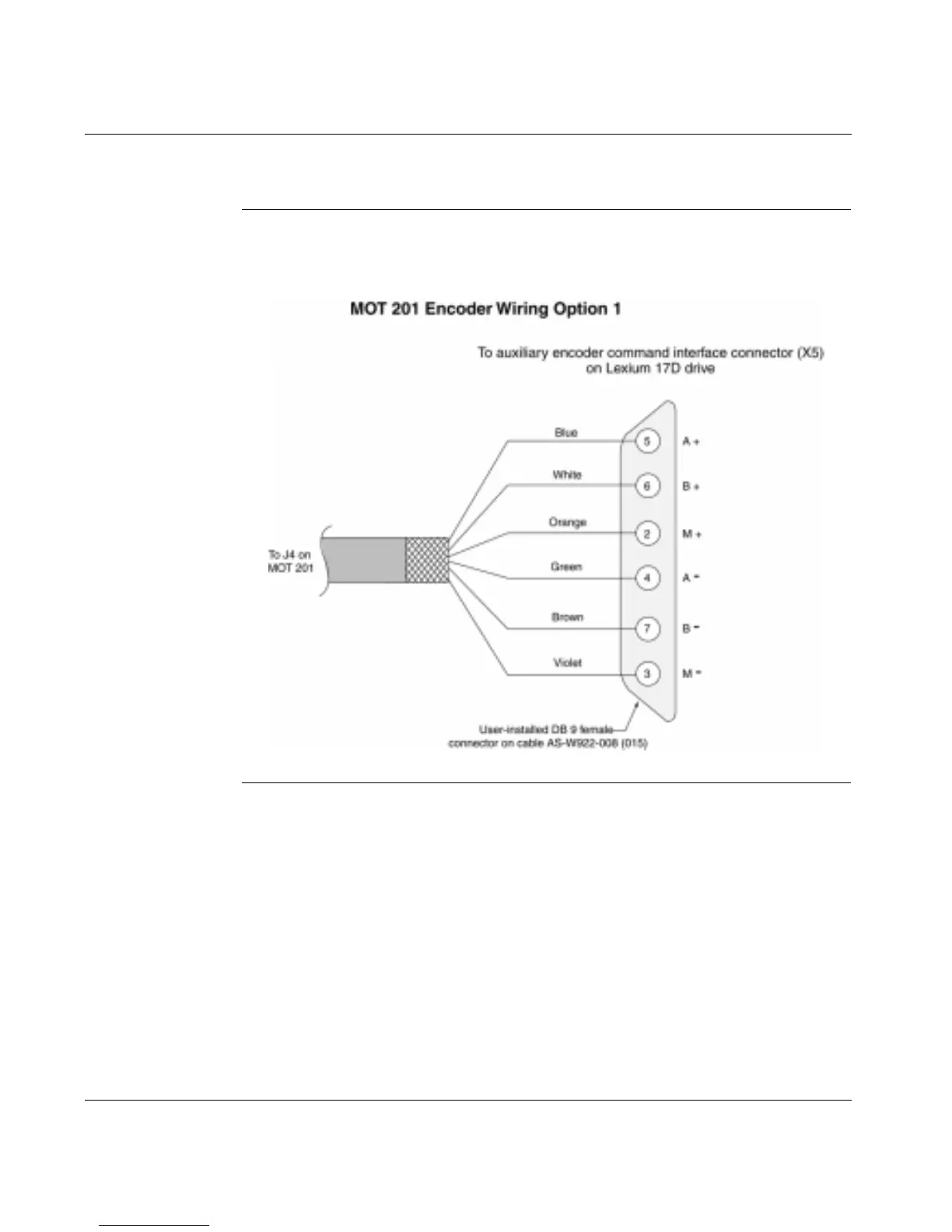

The following diagram shows the wiring between the MOT 201 connector J4 and
the Lexium 17D drive and the auxiliary encoder command Interface connector (X5).
Continued on next page
