The 17D Series Servo Drive Family, continued
17D System
Configuration
Diagram

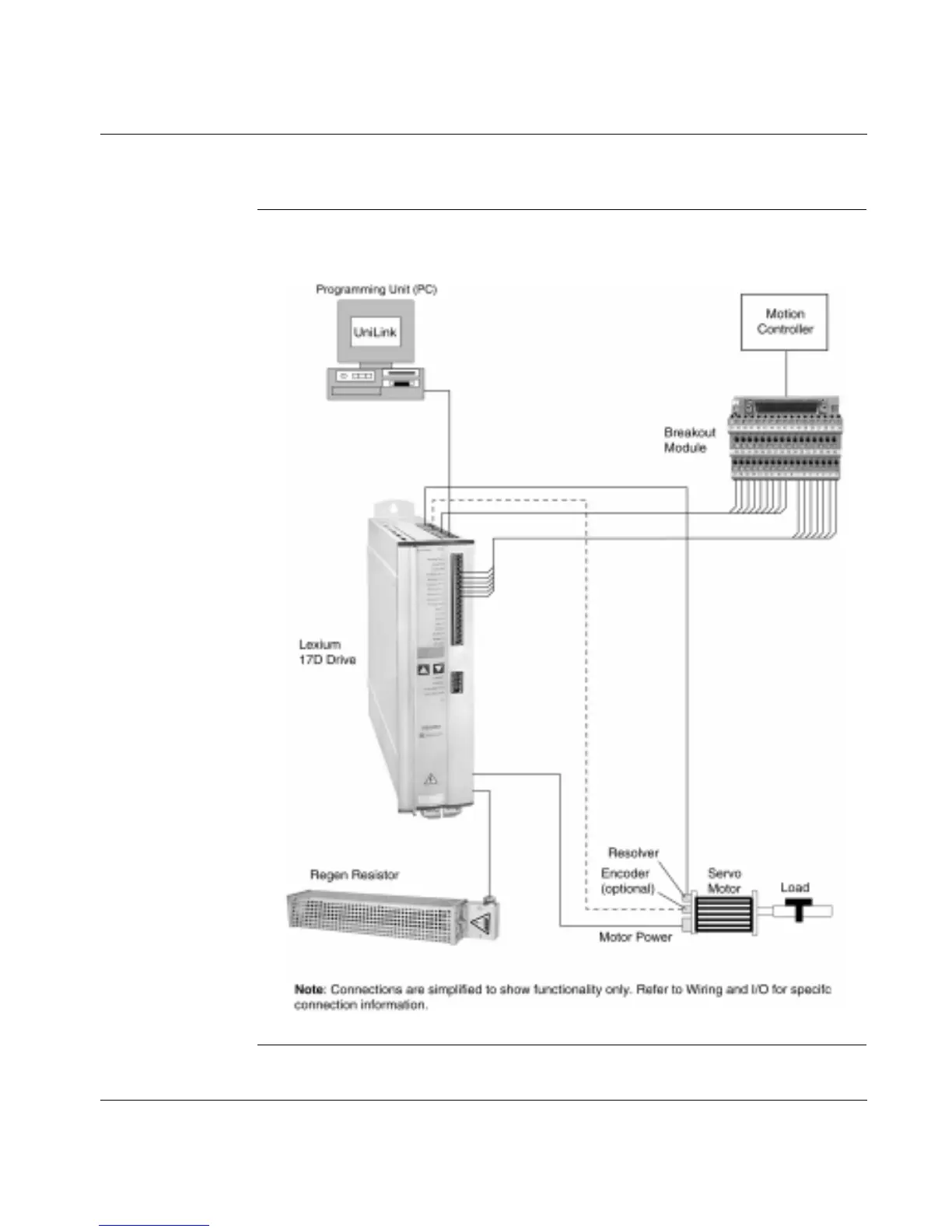

The following illustration shows a typical 17D system configuration.
