Wiring a 17D Drive to Quantum 140 MSx Motion Modules
Quantum 140
MSx Control and
Encoder Wiring
Diagram

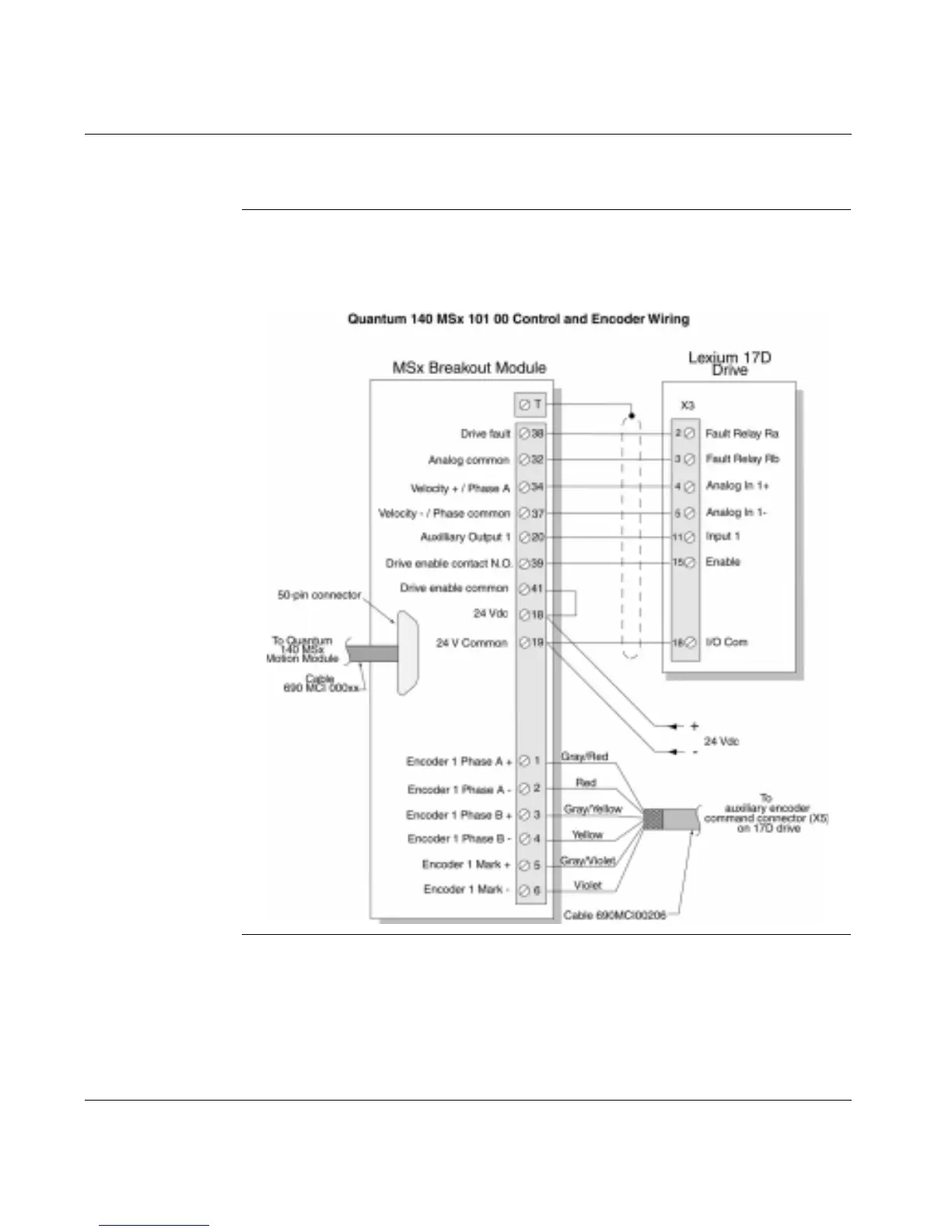

The following diagram shows how a Quantum 140 MSx breakout module facilitates
control and encoder wiring between a Quantum 140 MSx 101 00 motion module
and an Lexium 17D drive.
