Connection to
different mains
supply networks

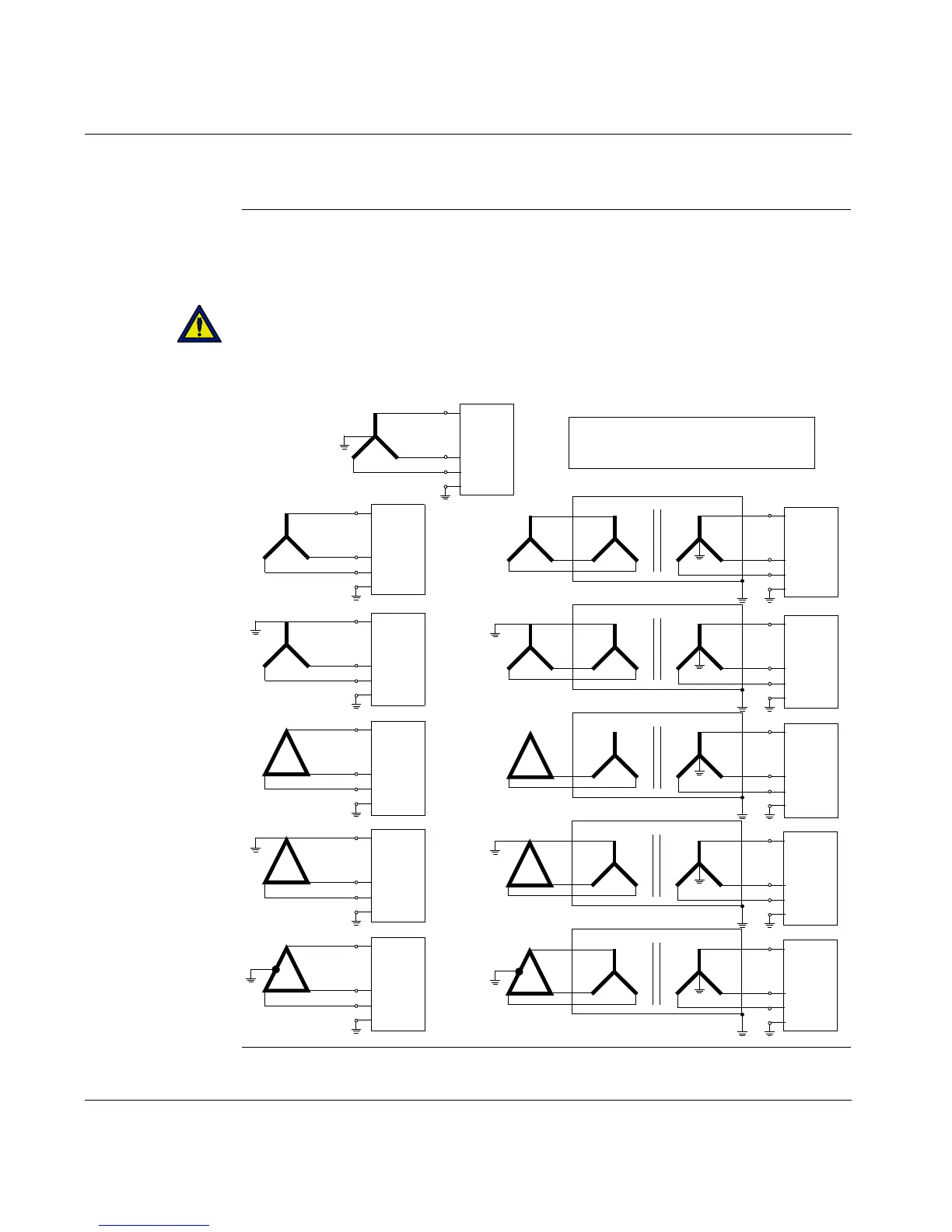

On this page you’ll find all possible connection variations to different mains supply
networks.
WARNING !
An isolating transformer is always required for 400...480V mains networks
without earth(ground) and for networks with asymmetrical earth(ground).
Continued on next page
208V with 60Hz only
230...480V with 50Hz or 60Hz
L1
L2
L3
PE
1:1400...480V
1:1400...480V
1:1400...480V
1:1400...480V
1:1400...480V
L1
L2
L3
PE
208...230V
208...230V
208...230V
208...230V
208...230V
208...480V
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
L1
L2
L3
PE
