Power Wiring, continued
Lexium BPH
Servo Motor
Connection
(excluded
BPH055)

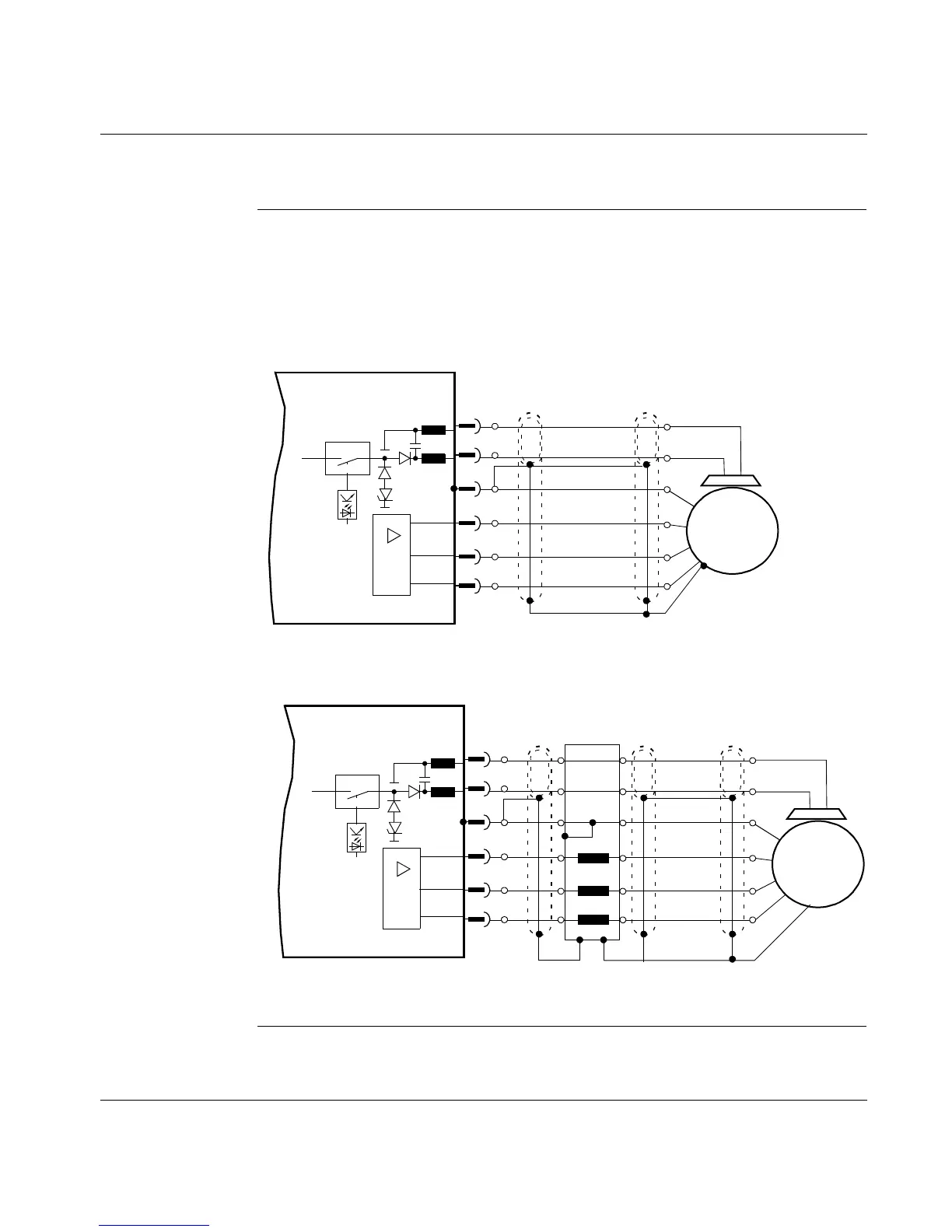

The following diagrams show the connections between a servo motor (excluded
BPH055) and the 17D drive. When the interface cable length exceeds 25 m, a
motor choke must be installed as shown and at a distance of one meter or less from
the drive.
Continued on next page
Servo
Motor
X9
1
2
3
4
5
6
24 Vdc
24 Vdc Com
LEXIUM 17D
Brake- (Black)
Gnd (Green)
W2 (3)
V2 (2)
U2 (1)
Brake+ (White)
Connection between servo motor and drive when interface cable length is 25 m or less.
Servo
Motor
X9
1
2
3
4
5
6
24 Vdc
24 Vdc Com
LEXIUM 17D
Brake -
(Black)
Gnd
(Green)
W2 (3)
V2 (2)
U2 (1)
Brake +
(White)
PE
W
V1
U1
B+
B-
PE
W
V2
U2
B+
B-
Motor Choke
AMOFIL001V056
Connection between servo motor and drive when interface cable length exceeds 25 m..
Note : The choke must be installed at a distance of one meter or less from the drive.
