Wiring a 17D Drive to B885-11x Motion Modules
B885-11x Control
Wiring Diagram

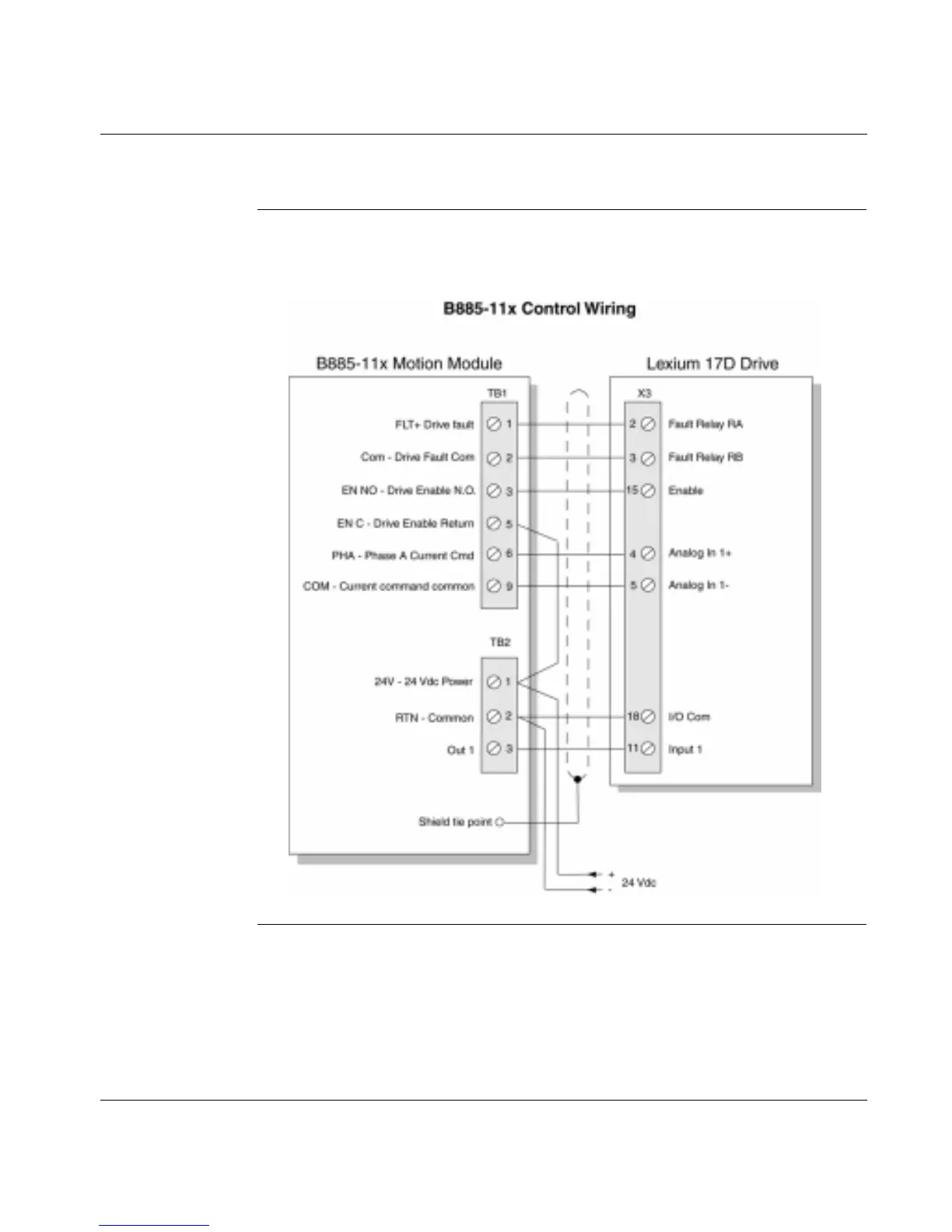

The following diagram shows the wiring between a B885-11x motion module
connectors TB1 and TB3 to the Lexium 17D drive X3 connector.
Continued on next page
