Stepper Motor Control Interface Connection
Stepper-Motor
Control Interface
Connection
Functional
Description
This interface can be used to connect the servo drive to a third-party stepper motor
controller. The parameters for the drive are set using the UniLink software and the
number of steps are adjustable to allow the drive to correlate to the step-direction
signals of any stepper-motor controller. In this configuration, the analog inputs are
disabled and the drive can provide various monitoring signals.
Stepper-Motor
Control Interface
Connection
Diagram

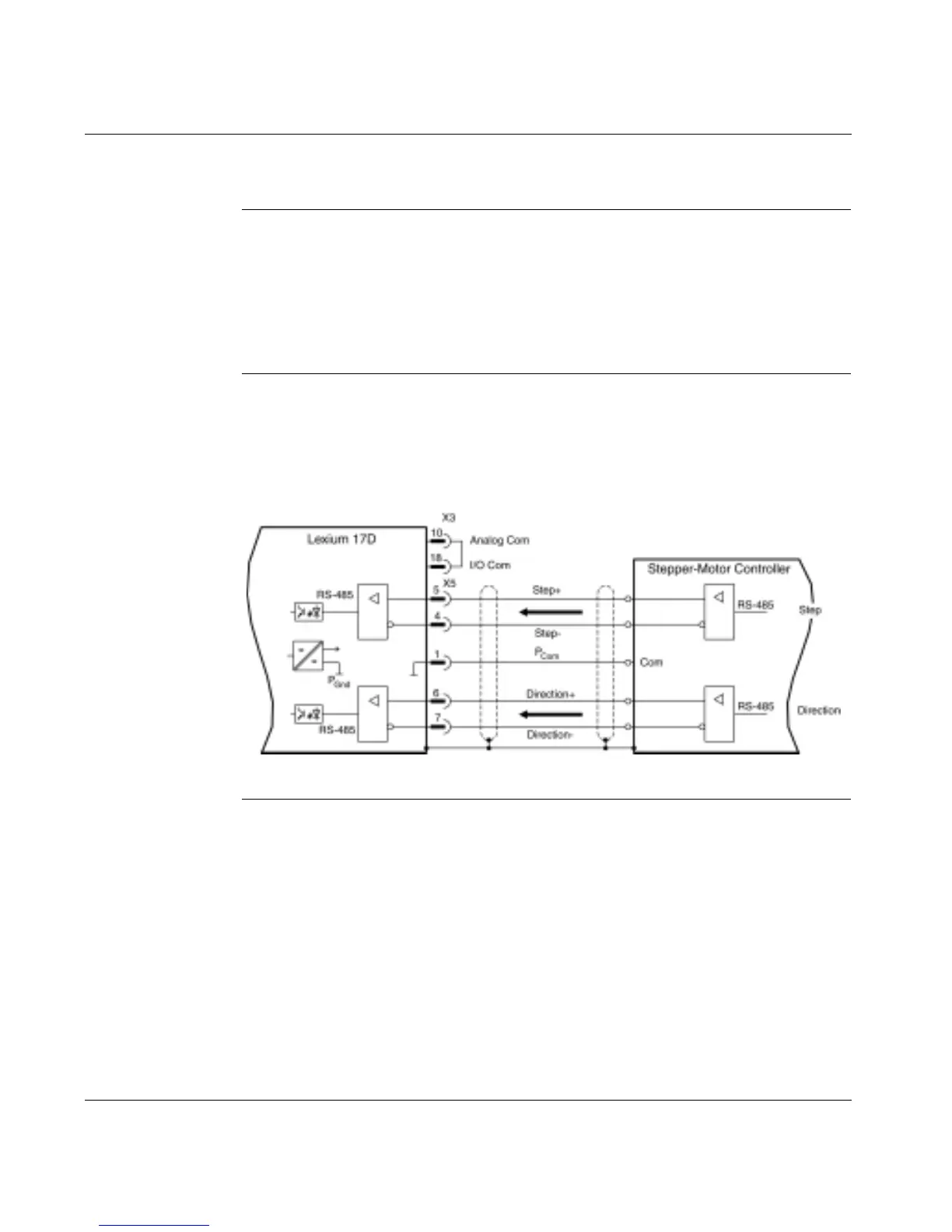

The following diagram depicts the communication connection between the Lexium
17D and a stepper-motor controller.
Continued on next page
