LEXIUM MHDA1004 - Wiring a 17 D Drive to a MOT 201 Motion Module; MOT 201 Control Wiring Diagram

140
Wiring a 17D Drive to a MOT 201 Motion Module
MOT 201 Control
Wiring Diagram

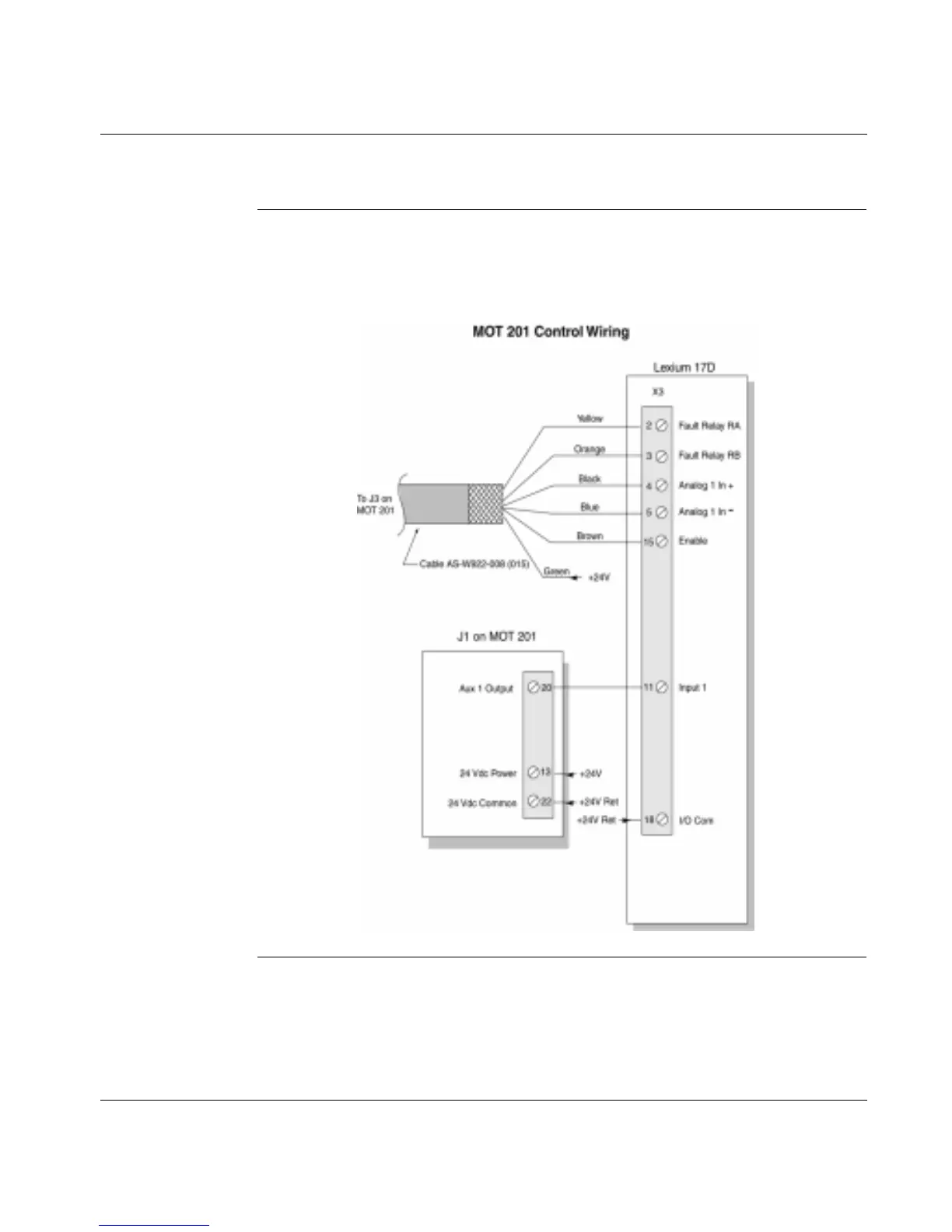

The following diagram shows the wiring between the MOT 201 connectors J3 and
J1 and the Lexium 17D drive X3 connector as well as the 24 Vdc bias field power
connection.
Continued on next page
