LEXIUM MHDA1004 - B885-11 X Encoder Wiring Diagram: Option 1

145
Wiring a 17D Drive to B885-11x Motion Modules, continued
B885-11x
Encoder Wiring
Diagram:
Option 1

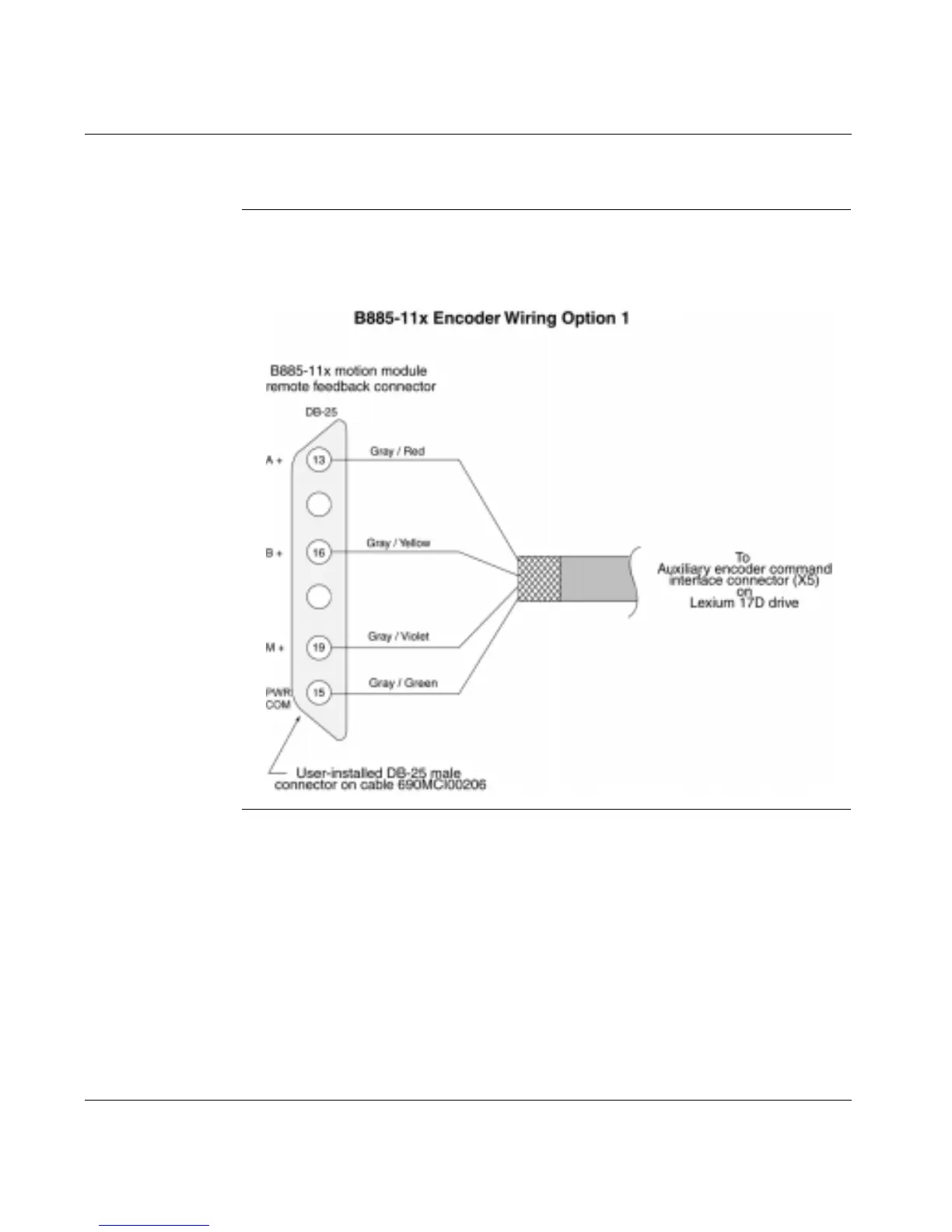

The following diagram shows the encoder wiring between the B885-11x motion
module DB-25 connector and the Lexium 17D drive auxiliary encoder command
interface connector (X5).
Continued on next page
