LEXIUM MHDA1004 - Wiring a 17 D Drive to Premium CAY Motion Modules; Premium CAY Single Axis Drive Option Diagram

137
Wiring a 17D Drive to Premium CAY Motion Modules
Premium CAY
Single Axis Drive
Option Diagram

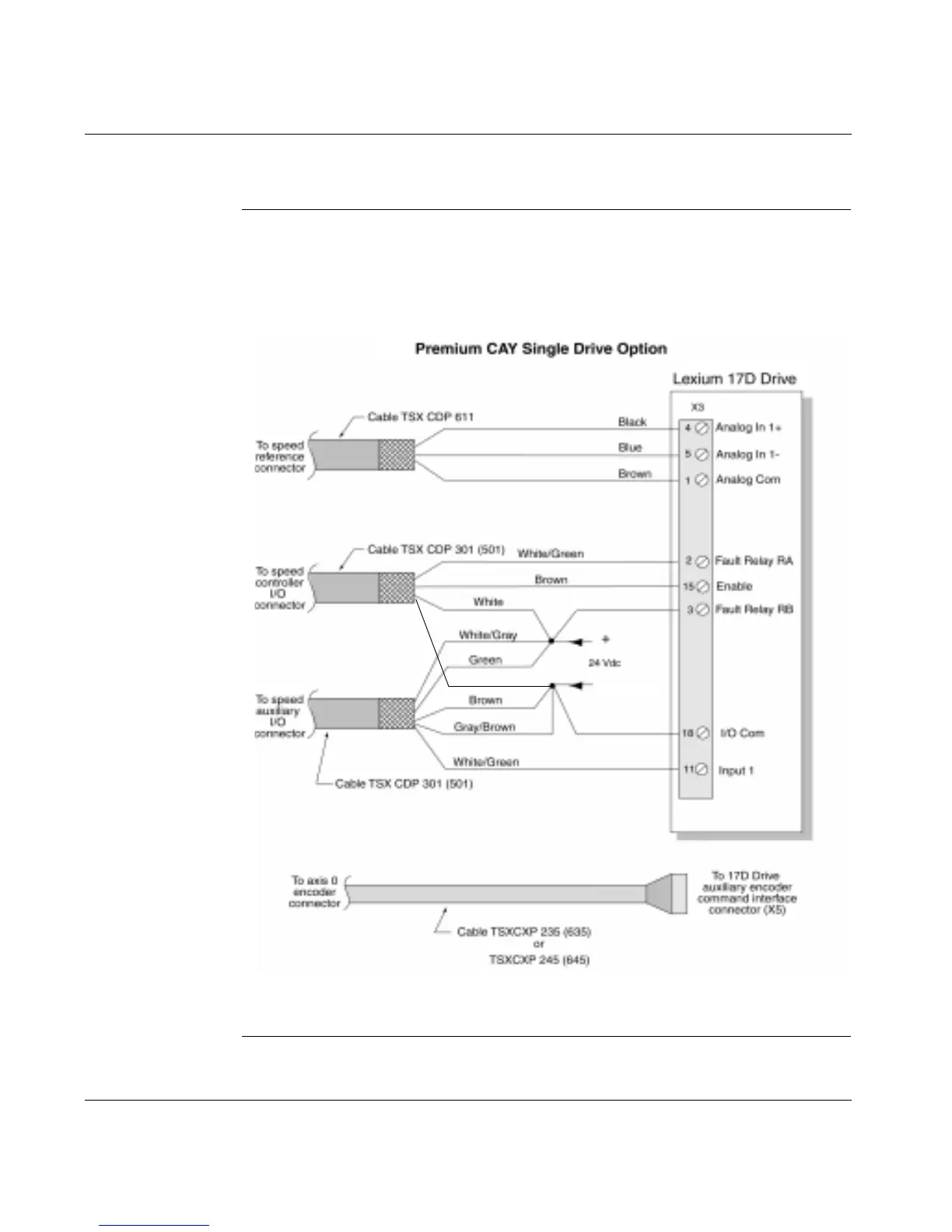

The following diagram shows wiring between a Premium CAY motion module and
the X3 connector on a single Lexium 17D axis.
Continued on next page
Axis 0
Gnd - ANA
Gray/Brown
* the encoder is powered by a 24 Vdc power supply
*
0 V
