72
Fault Relay and Digital I/O Connection
Digital Inputs
and Outputs

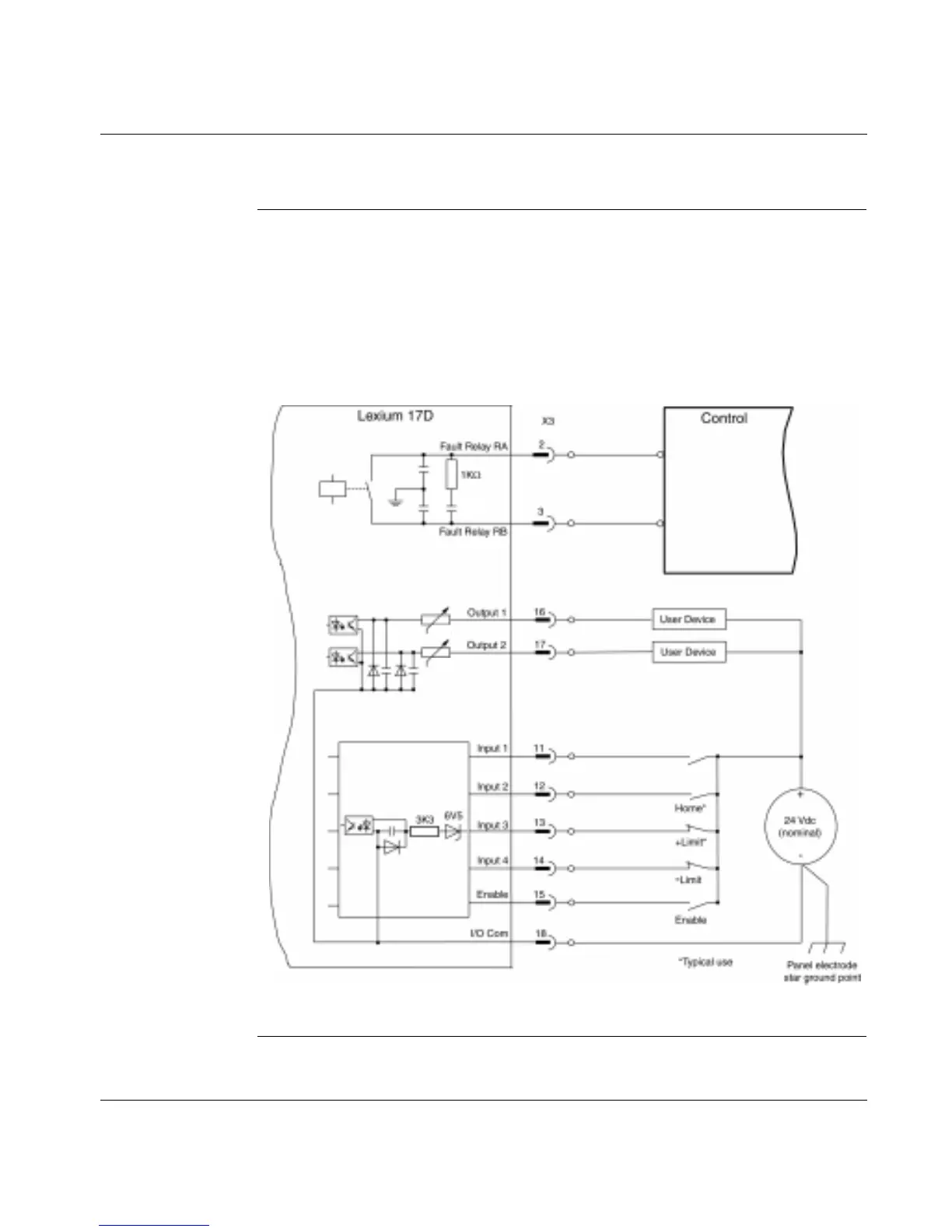

The following diagram shows the connections between the fault relay, the four fully-
programmable, digital inputs, dedicated enable input and two digital outputs on the
17D drive and typical user devices. (A list of pre-programmed functions is
contained in the UniLink online help.)
Continued on next page
100nF
25Ω
25Ω
To Next Page
