Signal Wiring, continued
Lexium BPH
Encoder
Connection

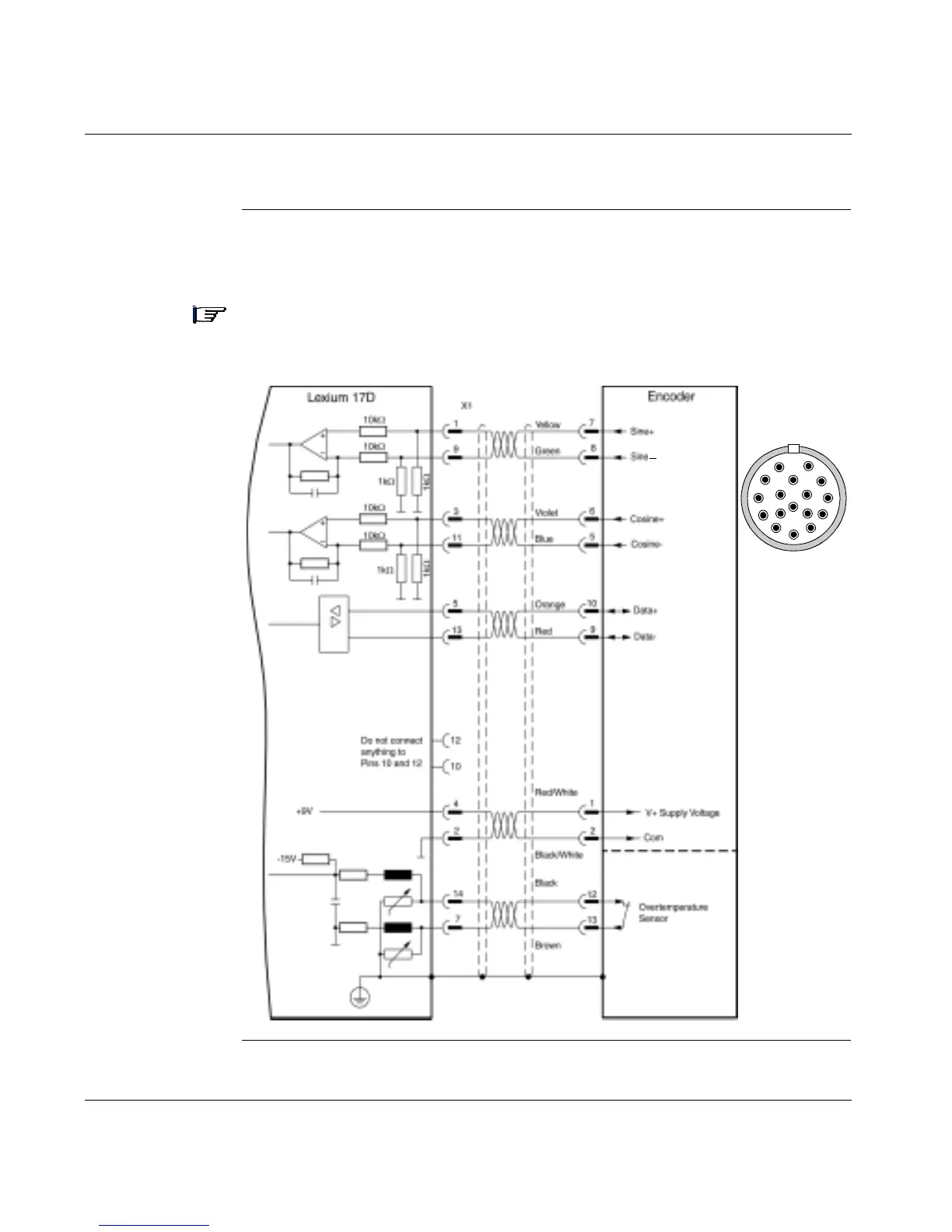

The following diagram shows the encoder input connections between the encoder
and the 17D drive.
Note: The BPH series servo motors can be optionally fitted with a single-turn or
multi-turn sine-cosine encoder, which is used by the 17D positioning or extremely
smooth running. In addition, the thermistor contact in the servo motor is connected
via the encoder cable to the 17D drive.
Continued on next page
HIPERFACE
Encoder
Connector
Pinout
1210
11
1
9
8
7
6
5
4
3
2
17
1316
15
E
14
