LEXIUM MHDA1004 - B885-11 X Encoder Wiring Diagram: Option 2

146
Wiring a 17D Drive to B885-11x Motion Modules, continued
B885-11x
Encoder Wiring
Diagram:
Option 2

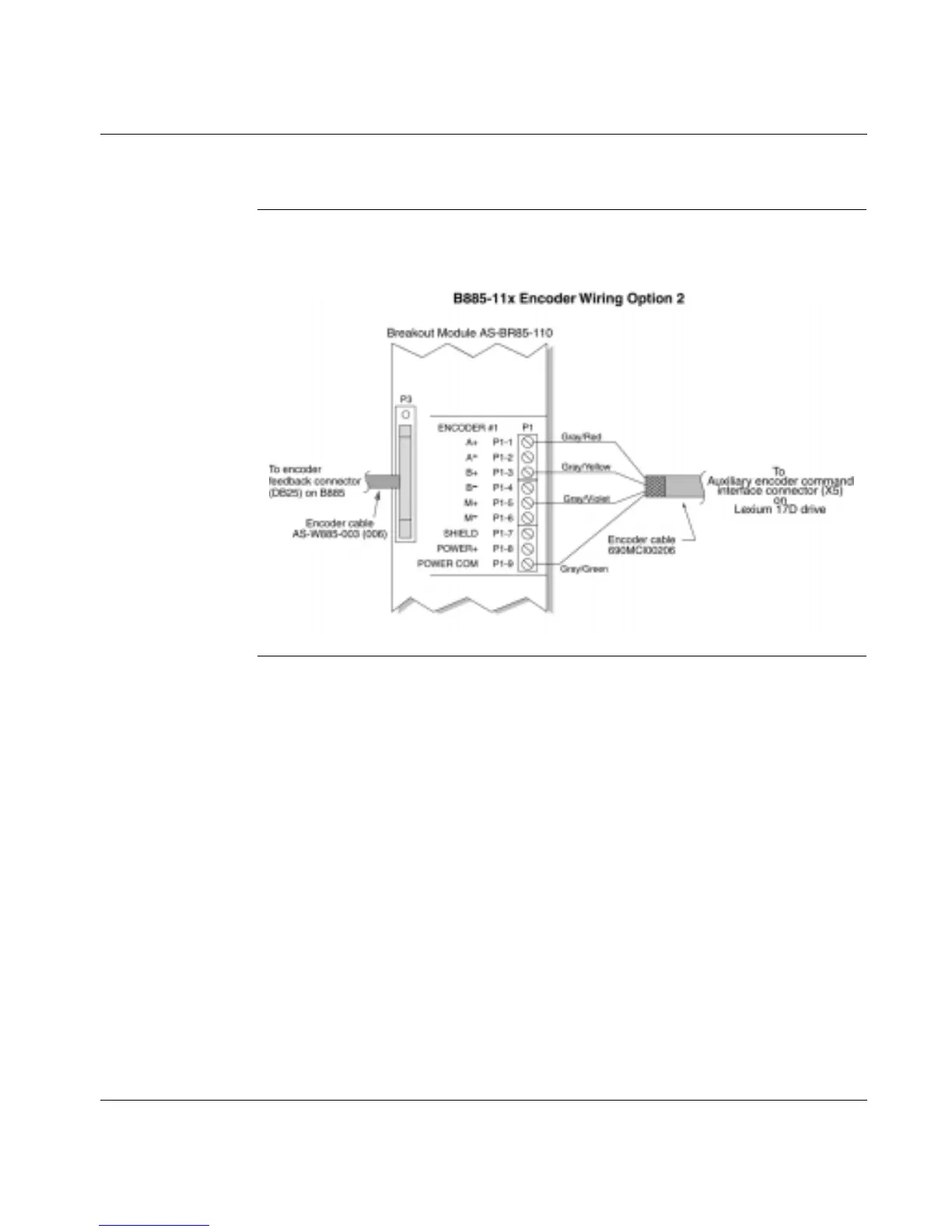

The following diagram shows how the AS-BR85-110 breakout module facilitates
encoder wiring between a B885-11x motion module and an Lexium 17D drive.
