I/O Expansion Cards
24 Vdc Discrete
I/O Expansion
Card
The 24 Vdc discrete I/O Expansion Card (I/O Card AM0INE001V000) increases the
available I/O to the drive. With the I/O Card installed, the drive can accommodate
an additional 14 discrete inputs and 8 discrete outputs which are fully compatible
with Modicon/Telemecanique family of PLCs. The drive must be powered off (both
the AC Mains and the 24 Vdc Bias Supply) when the I/O Card is installed. The card
is automatically recognized upon power-up of the drive.
IConnector and
LED Location
Diagram

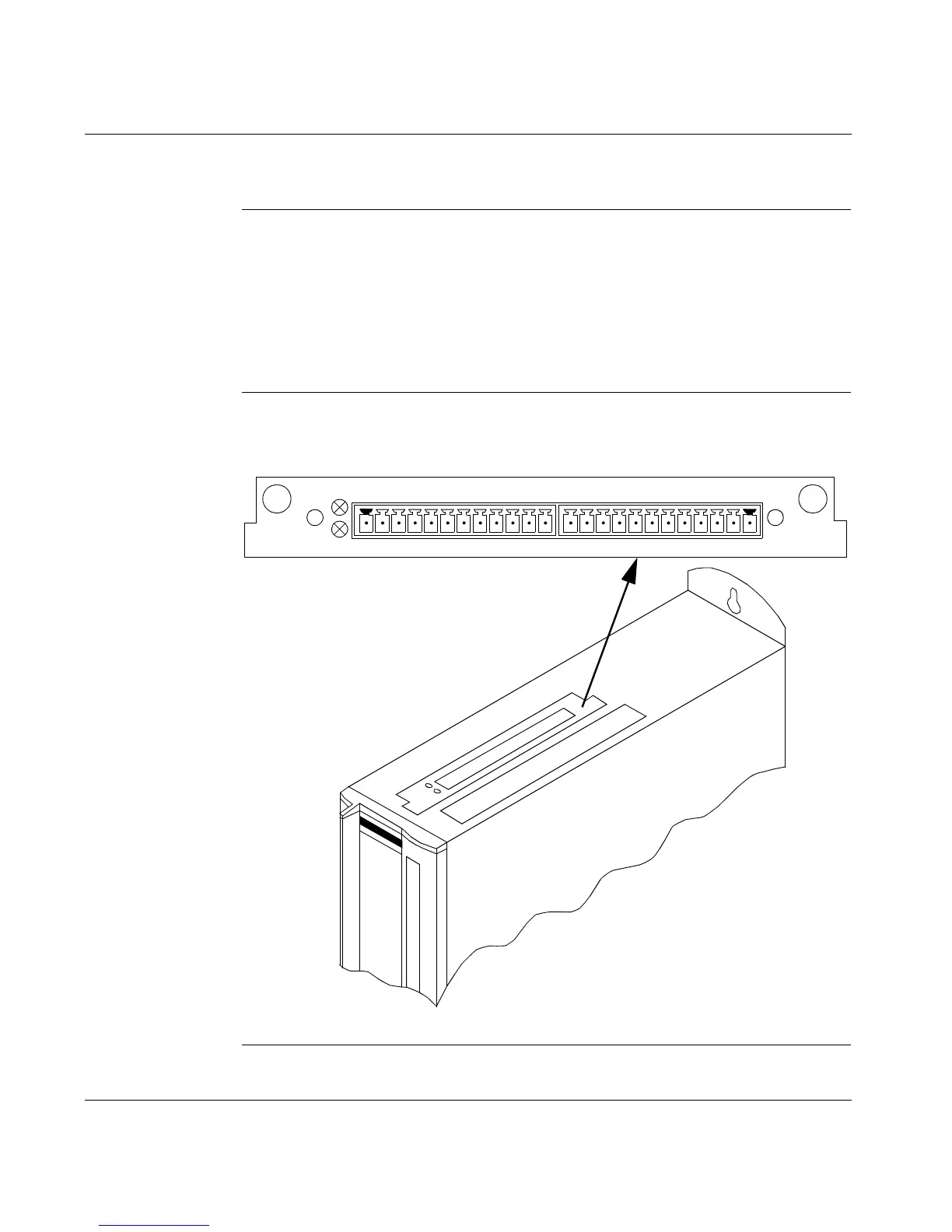

The following diagram shows the locations of the Light-Emitting Diodes (LEDs) and
the connectors for the I/O Expansion Card.
Continued on next page
ERR
24V 1 1
X11A X11B
I/O Connect 14/8
X
1
1
