Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 202
Anchor Description
X, Y, or Z Lets you choose the X, Y, or Z measurement of another tool
to use as a positional anchor for this tool.
Anchoring
A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 145.
Dimension
The Dimension tool returns various dimensional measurements of a part. You must specify two feature
types (see below).
Gocator compares the measurement value with the values in Min and Max to yield a decision. For more
information on decisions, see Decisions on page 142.
See Adding and Configuring a Measurement Tool on page 134 for instructions on how to add
measurement tools.

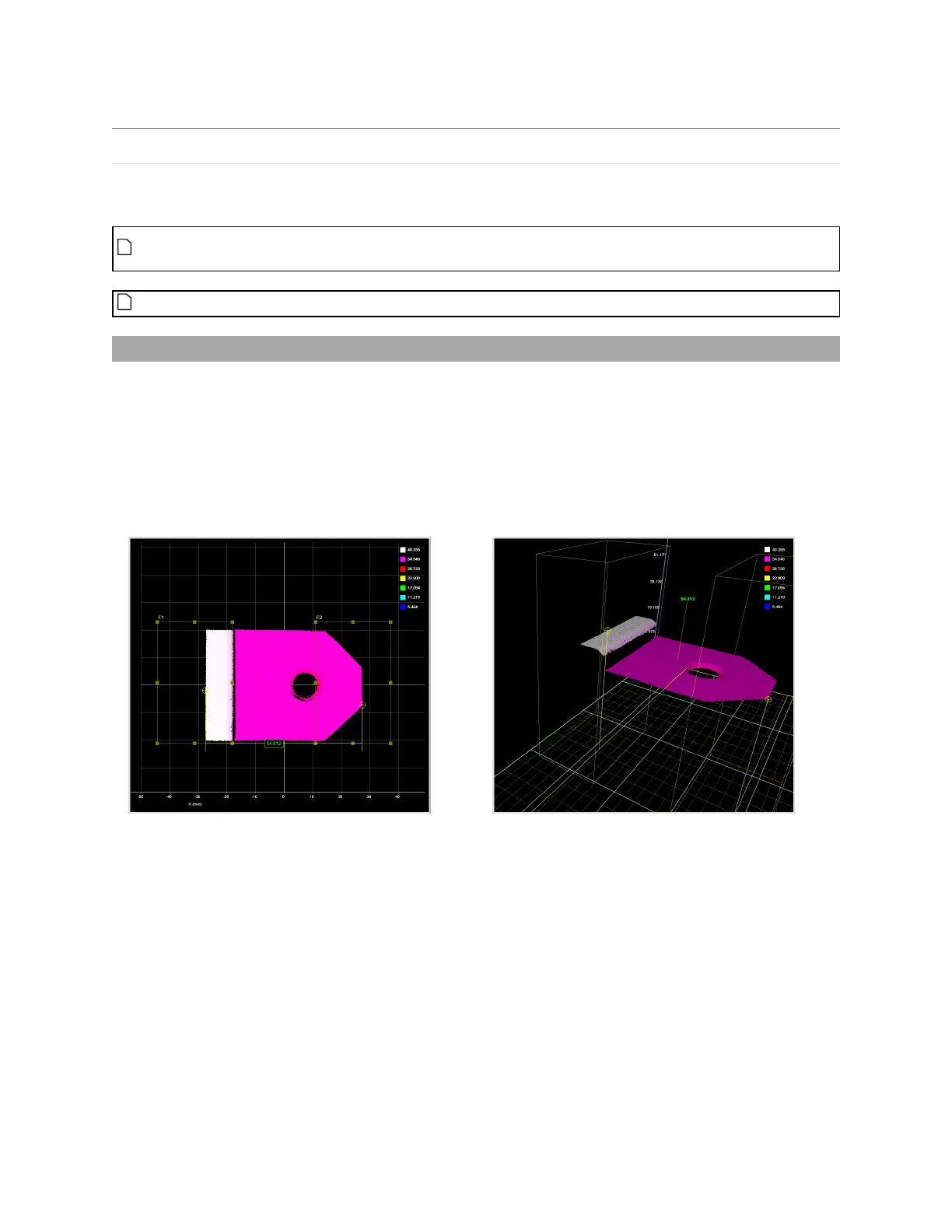

2DView 3DView
