Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 164
Parameter Description
Filters The filters that are applied to measurement values before
they are output. For more information, see Filters on page
143.
Decision The Max and Min settings define the range that determines
whether the measurement tool sends a pass or fail decision
to the output. For more information, see Decisions on page
142.
Anchor Description
X or Z Lets you choose the X or Z measurement of another tool to
use as a positional anchor for this tool.
Anchoring
A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 145.

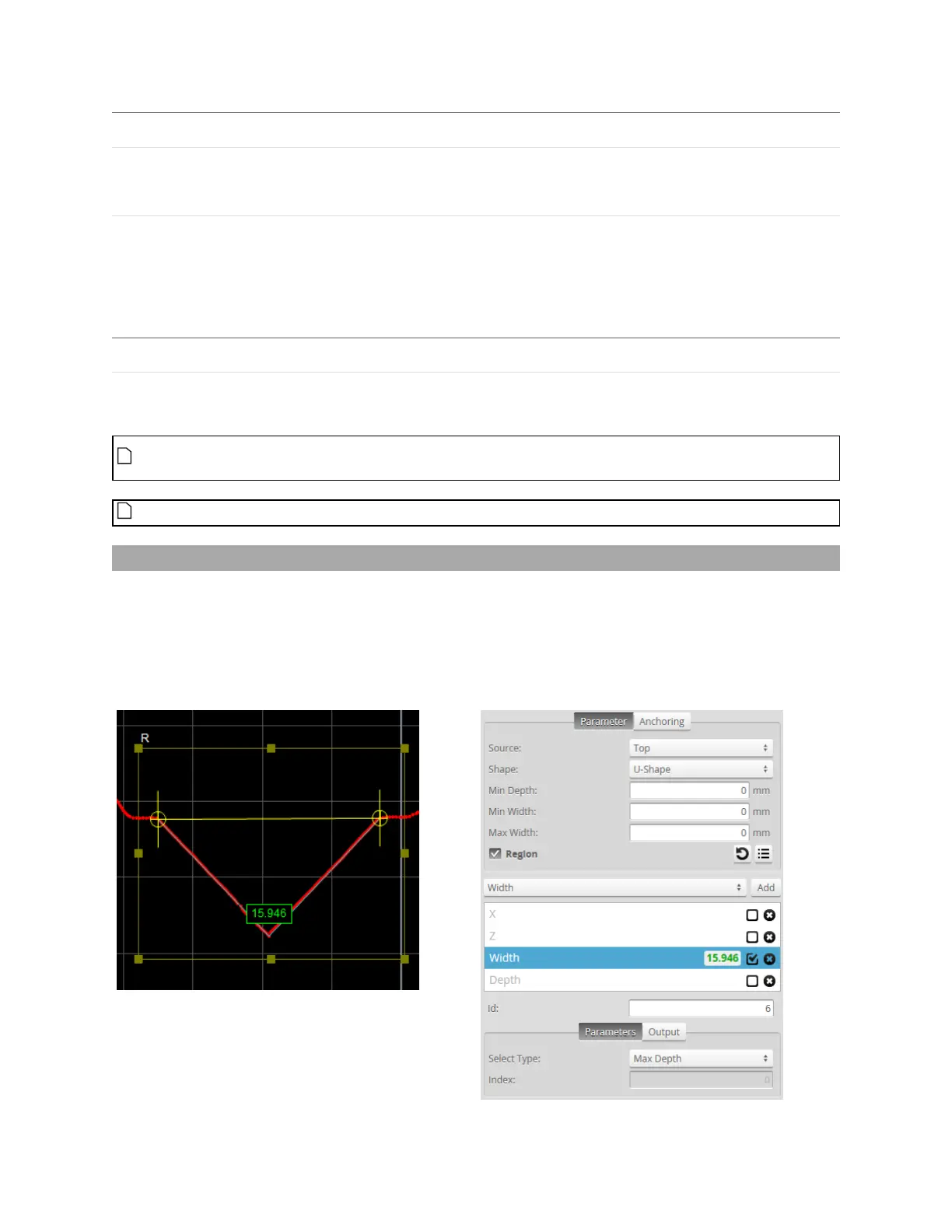

Groove
The Groove tool provides measurements of V-shape, U-shape, or open-shape grooves. Gocator
compares the measurement value with the values in Min and Max to yield a decision. For more
information on decisions, see Decisions on page 142.
See Adding and Configuring a Measurement Tool on page 134 for instructions on how to add
measurement tools.
