Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 74
Scan Setup and Alignment
The following sections describe the steps to configure Gocator sensors for 3Ddata acquisition using the
Scan page. Setup and alignment should be performed before adding and configuring measurements or
outputs.

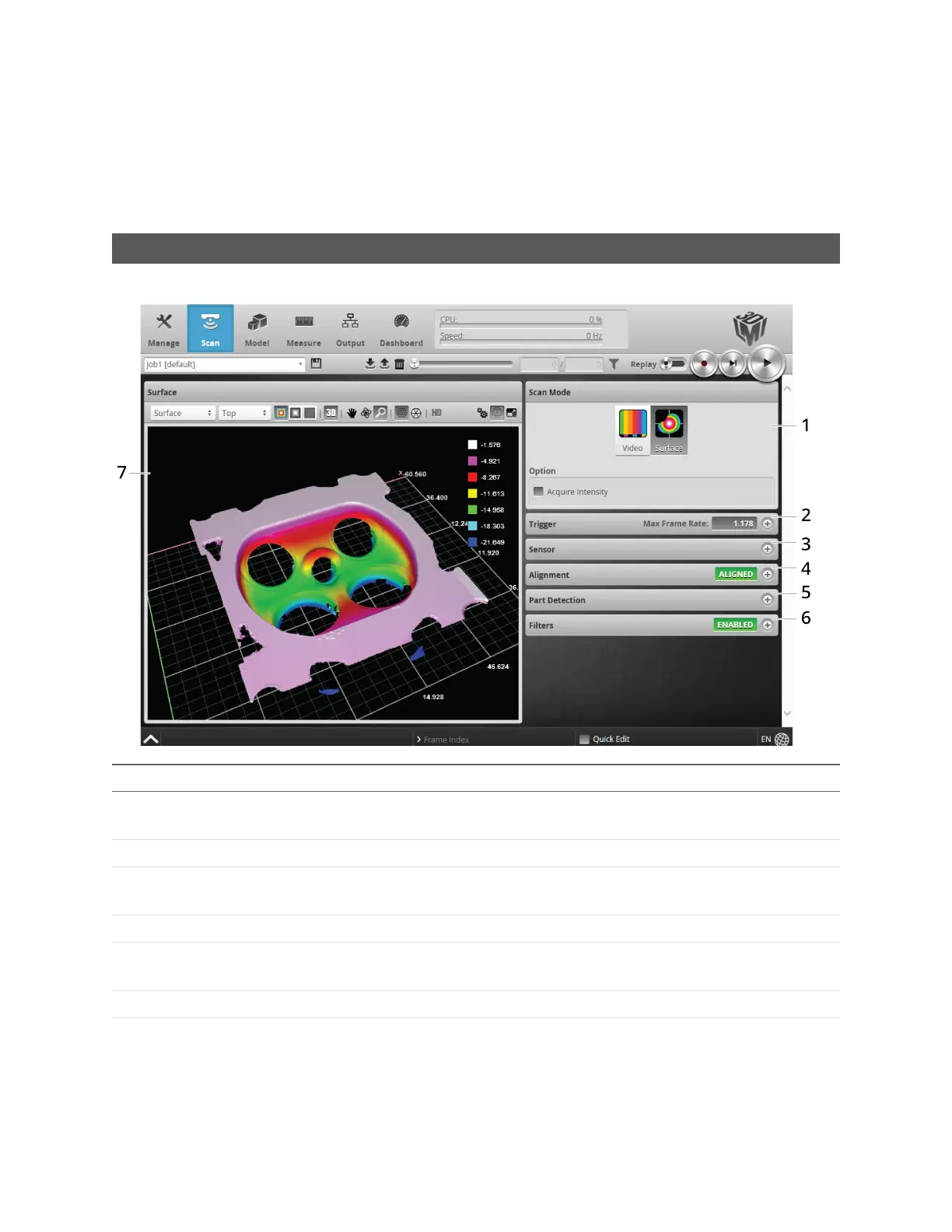

Scan Page Overview
The Scan page lets you configure sensors and perform alignment.
Element Description
1 Scan Mode panel
Contains settings for the current scan mode and other options. See Scan Modes on the
next page.
2 Trigger panel
Contains trigger source and trigger-related settings. See Triggers on the next page.
3 Sensor panel
Contains settings for an individual sensor, such as active area or exposure. See Sensor on
page 79.
4 Alignment panel
Used to perform alignment. See Alignment on page 92.
5 Part Detection
panel
Used to set the part detection logic for sorting data into discrete objects. See Part
Detection on page 98.
6 Filters panel
Contains settings for post-processing of the profiles. See Filters on page 95.
7 Data Viewer Displays sensor data and adjusts regions of interest. Depending on the current operation
mode, the data viewer can display video images or scan data. See Data Viewer on page
102.
