Gocator Snapshot Sensors: User Manual
Getting Started • 33

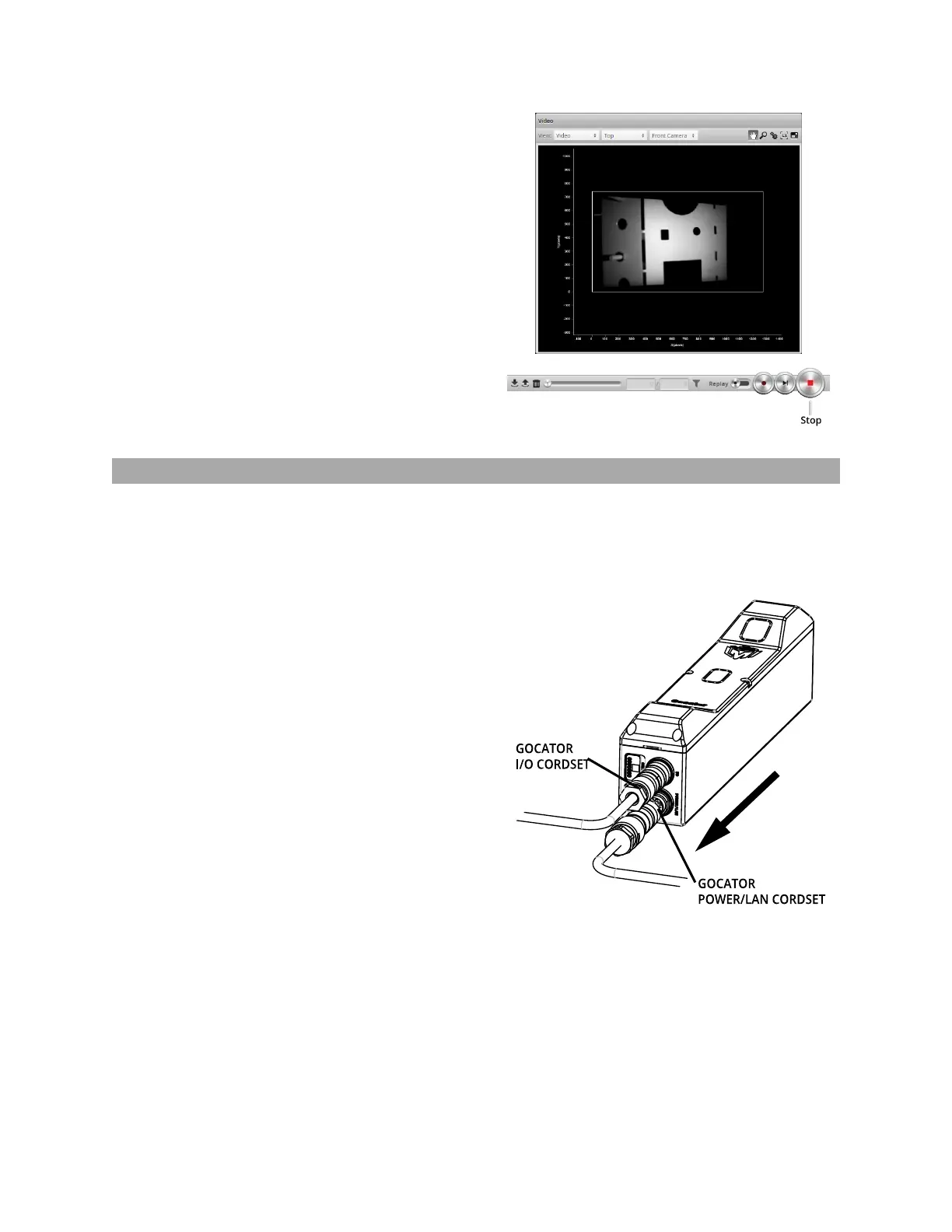

8. Move a target into the LEDlight pattern.
If a target object is within the sensor's measurement
range, the data viewer will display the shape of the target,
and the sensor's range indicator will illuminate.
If you cannot see the laser, or if a 3D heightmap is not
displayed in the Data Viewer, see Troubleshooting on page
517.
9. Press the Stop button.
The LED light projection should turn off.
Running a Multi-Sensor System
All sensors are shipped with a default IP address of 192.168.1.10. Ethernet networks require a unique IP
address for each device, so you must set up a unique address for each sensor. For each additional
sensor, follow the steps below.
To configure a multi-sensor system:
1. Turn off the sensor and unplug the Ethernet network
connection of any configured sensors.
To Next Page
