Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 163

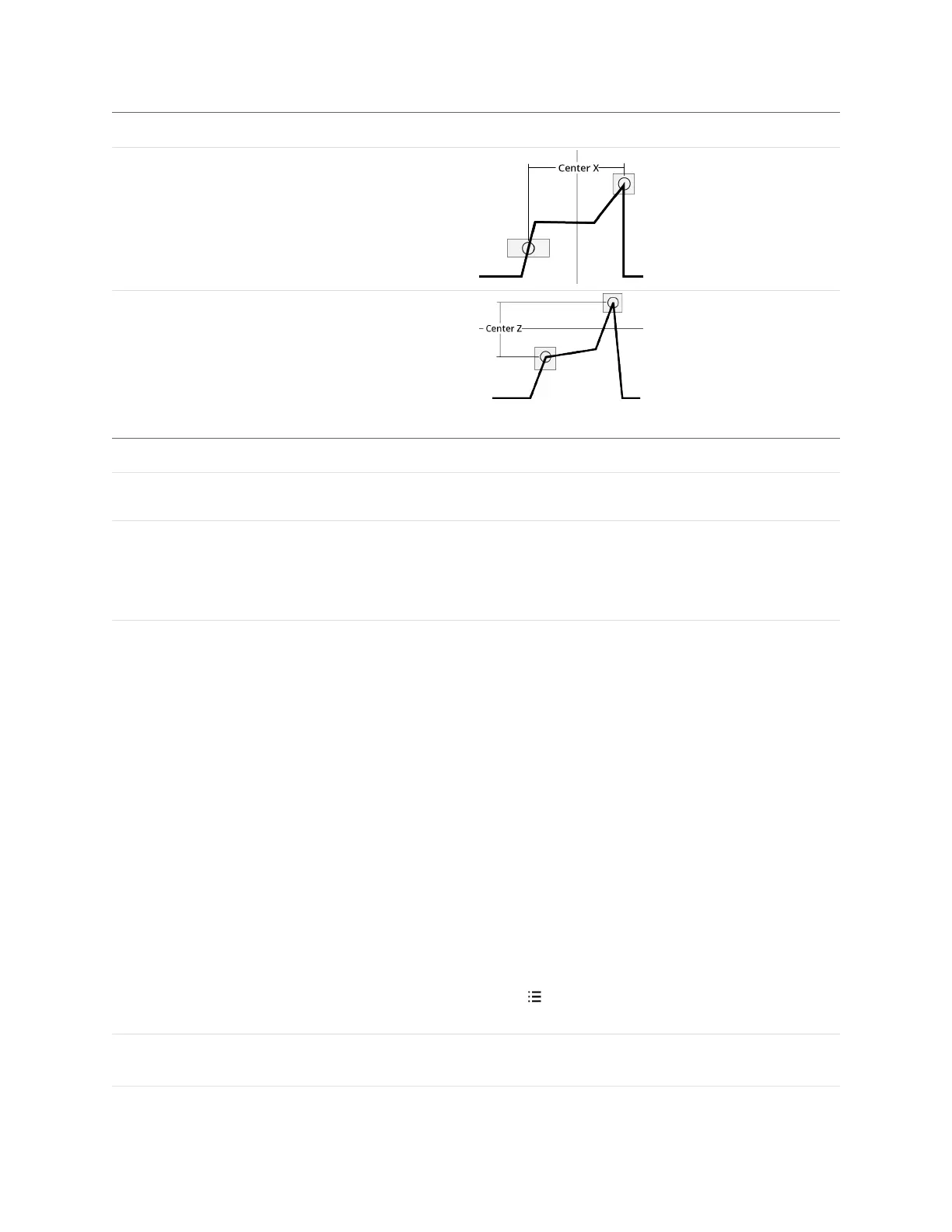

Measurement Illustration
Center X
Finds the average location of two features and measures
the X axis position of the average location
Center Z
Finds the average location of two features and measures
the Z axis position of the average location.
Parameter Description
Source The sensor that provides data for the tool's measurements.
For more information, see Source on page 135.
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a
section is defined on the surface data.
For more information on sections, see Sections on page 127.
Feature 1
Feature 2
The Feature 1 and Feature 2 settings represent the two
features the tool uses to perform measurements. For each,
one of the following:
l Max Z
l Min Z
l Max X
l Min X
l Corner
l Average
l Rising Edge
l Falling Edge
l Any Edge
l Top Corner
l Bottom Corner
l Left Corner
l Right Corner
l Median
To set the region of a feature, adjust it graphically in the
data viewer, or expand the feature using the expand
button ( ) and enter the values in the fields. For more
information on regions, see Regions on page 136.
Absolute
(Width and Height measurements only)
Determines if the result will be expressed as an absolute or
a signed value.
