The tool's measurements require two feature points. See Feature Points on page 138 for information on
point types and how to configure them.

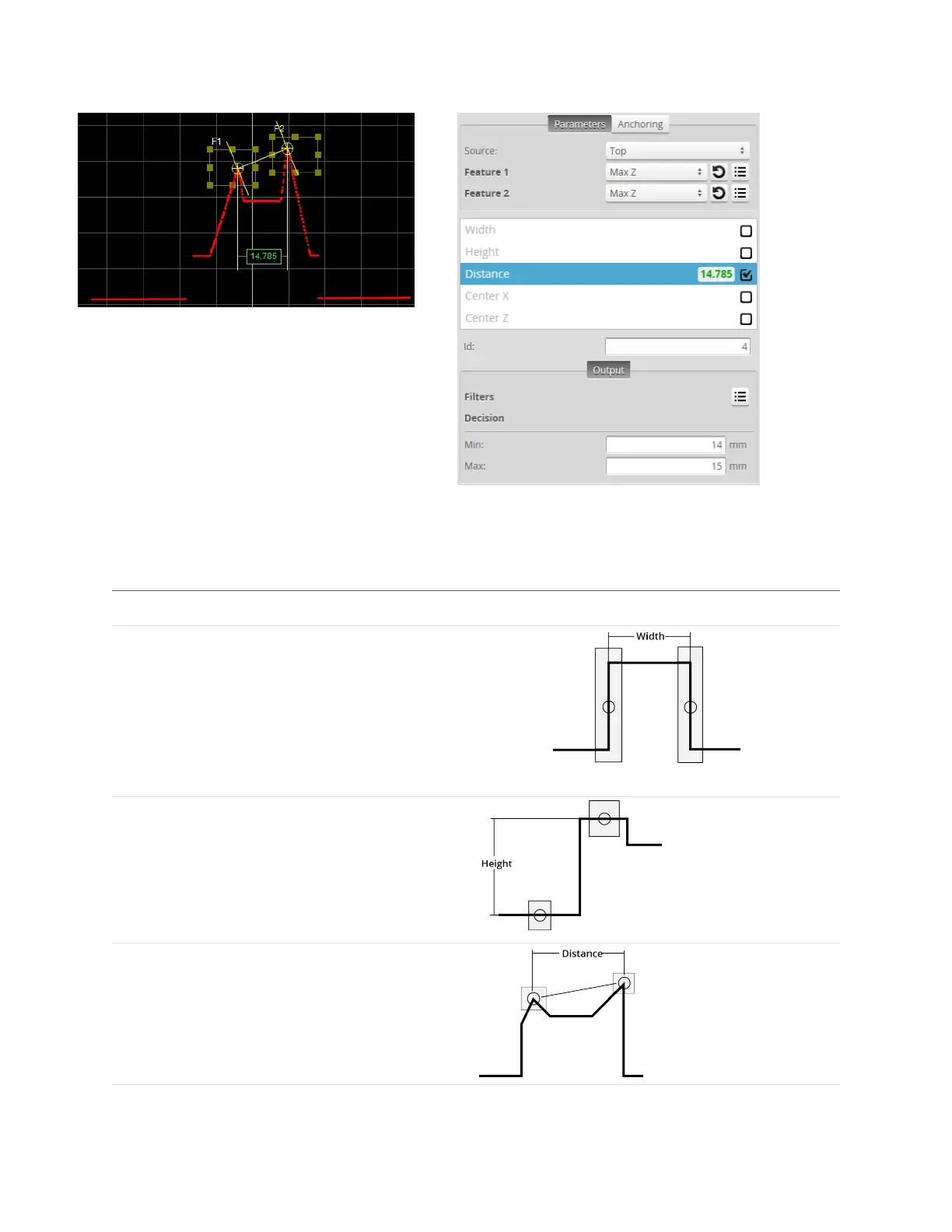

Measurement Illustration
Width
Determines the difference along the X axis between two
feature points.
The difference can be calculated as an absolute or signed
result. The difference is calculated by:
Width = Feature 2
X position
– Feature 1
X position
Height
Determines the difference along the Z axis between two
feature points.
The difference can be expressed as an absolute or signed
result. The difference is calculated by:
Height = Feature 2
Z position
– Feature 1
Z position
Distance
Determines the direct, Euclidean distance between two
feature points.
