Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 255

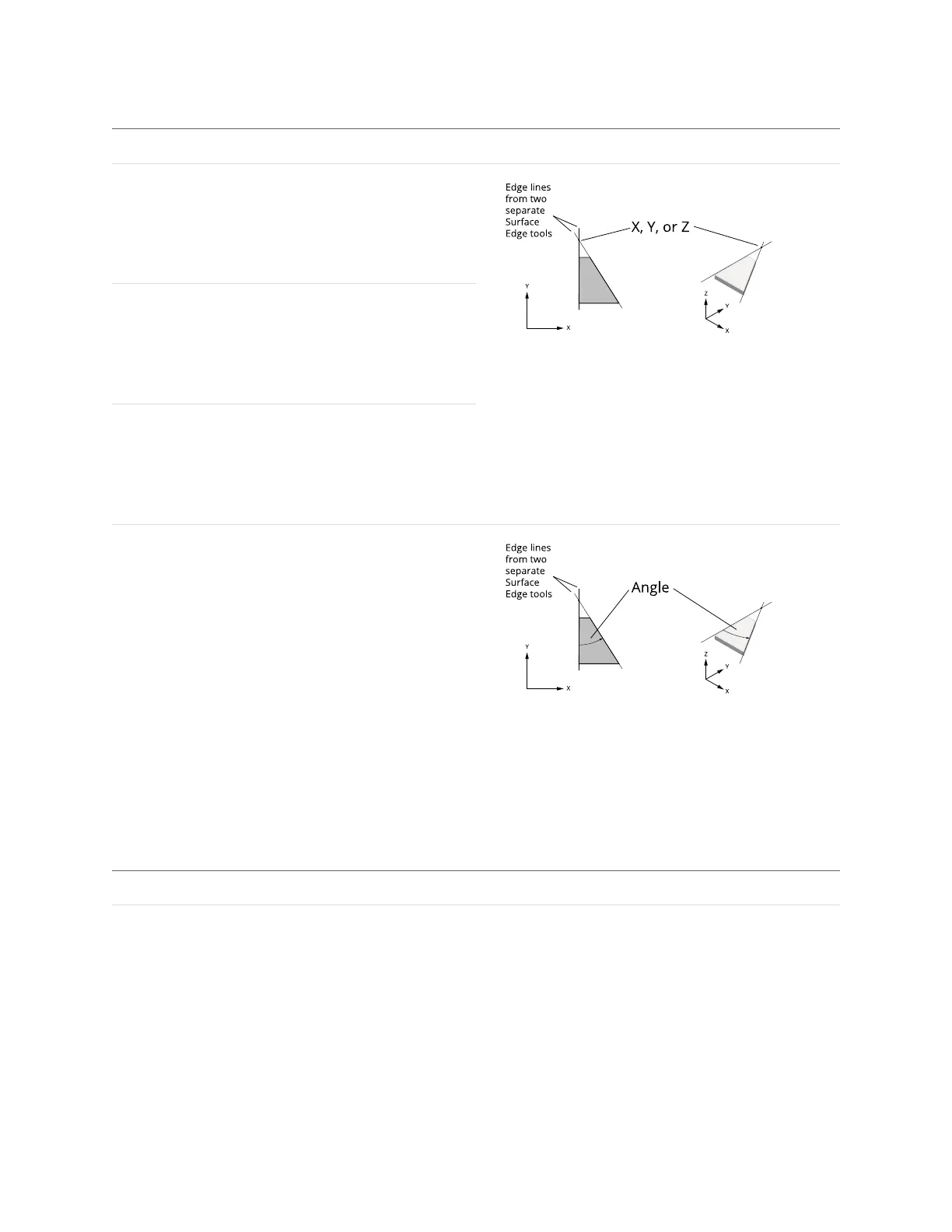

Measurement Illustration
X
Line-Line: The X position of the intersect point between the
lines.
Line-Plane: The X position of the intersect point between the
line and the plane.
Y
Line-Line: The Y position of the intersect point between the
lines.
Line-Plane: The Y position of the intersect point between the
line and the plane.
Z
Line-Line: The Z position of the intersect point between the
lines.
Line-Plane: The Z position of the intersect point between the
line and the plane.
Angle
Line-Line: The angle between the lines, as measured from
the line selected in Reference Feature to the line selected
in Line. Line-line angles can range over 360 degrees,
expressed either as an angle from -180 to 180 or as an angle
from 0 to 360 degrees.
Line-Plane:The angle between the line and the
perpendicular projection of the line onto the plane, as
measured from the plane geometric feature selected in
Reference Feature to the line selected in Line. Line-plane
angles are expressed as an angle from 90 to -90 degrees,
which can be expressed as an absolute value.
In both cases, use the Angle Range setting to determine
how angles are expressed.
Measurements
Type Description
Intersect Point The intersect point of the two edge lines.
Features
