26
Installing the Inverter
Function
Label
Name
Description
(A1 and C1 open connection)
A2, C2
Multi-functional
relay output terminal
The signal is generated while operating. Define and use
the multi-functional relay output terminal (Less than
AC250 V 5A, Less than DC30 V 5A).
Terminal
contacts
S+/S-/SG
RS-485 signal line
Used to send or receive RS-485 signals. Refer to 5 RS-485
Communication Features on page 125 for more details.
NC
NC
Not in use.

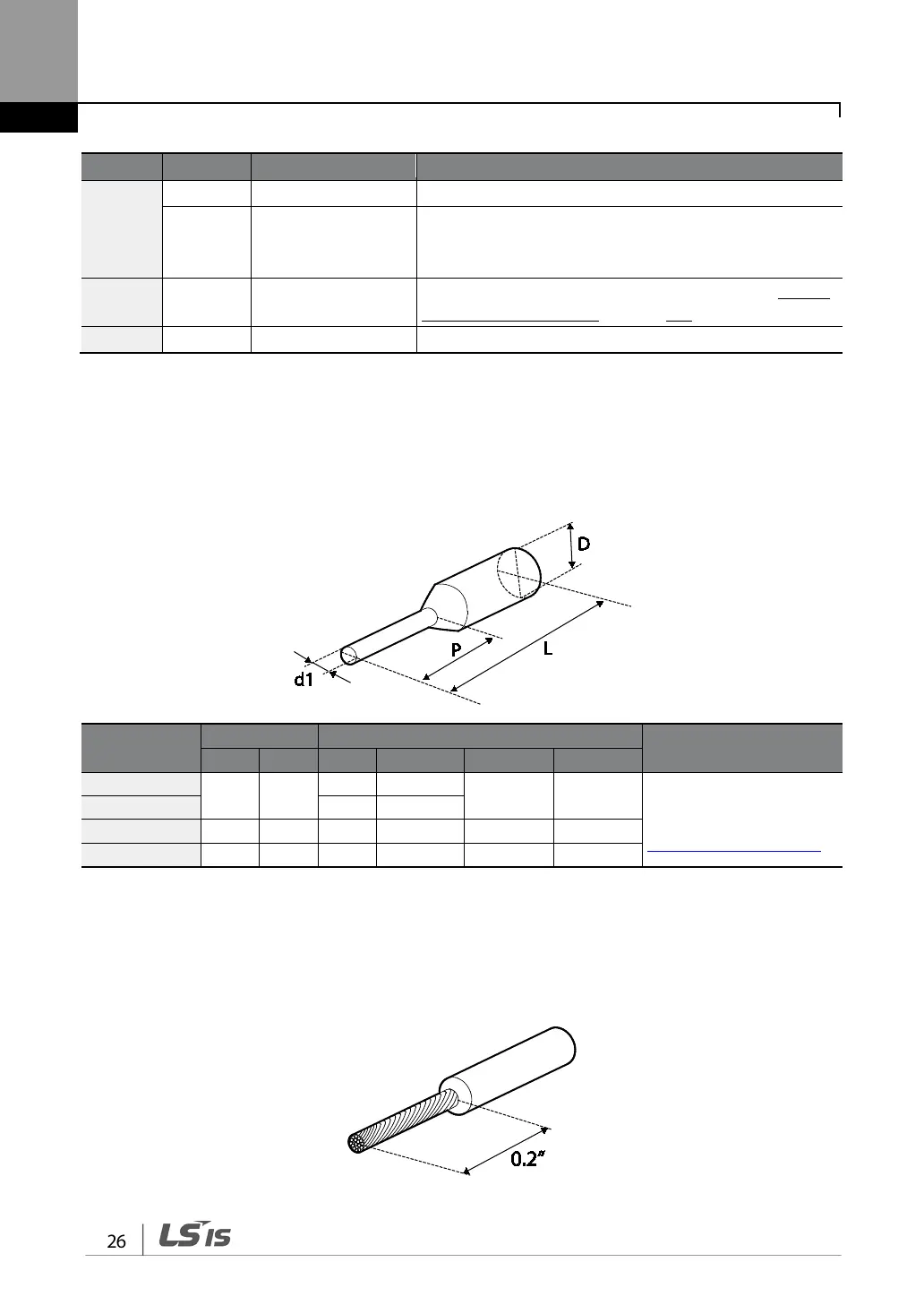

Preinsulated Crimp Terminal Connectors (Bootlace Ferrule) .
Use preinsulated crimp terminal connectors to increase reliability of the control terminal wiring.
Refer to the specifications below to determine the crimp terminals to fit various cable sizes.
P/N
Cable Spec.
Dimensions (inches/mm)
Manufacturer
AWG
mm
2
L*
P
d1
D
CE002506
26 0.25
10.4
0.4 / 6.0
0.04 / 1.1 0.1 / 2.5
JEONO
(Jeono Electric,
http://www.jeono.com/
)
CE002508
12.4
0.5 / 8.0
CE005006
22
0.50
12.0
0.45 / 6.0
0.05 / 1.3
0.125 / 3.2
CE007506
20
0.75
12.0
0.45 / 6.0
0.06 / 1.5
0.13 / 3.4
* If the length (L) of the crimp terminals exceeds 0.5” (12.7mm) after wiring, the control terminal
cover may not close fully.
To connect cables to the control terminals without using crimp terminals, refer to the following
illustration detailing the correct length of exposed conductor at the end of the control cable.
