Chapter 3 Before positioning
3- 33
•M code output mode set in the parameter is applied to all operation step of each axis.
•The user can select one M code output mode among three modes, NONE, WITH, AFTER.
According to each setting value, timing of M code output signal is as follows.

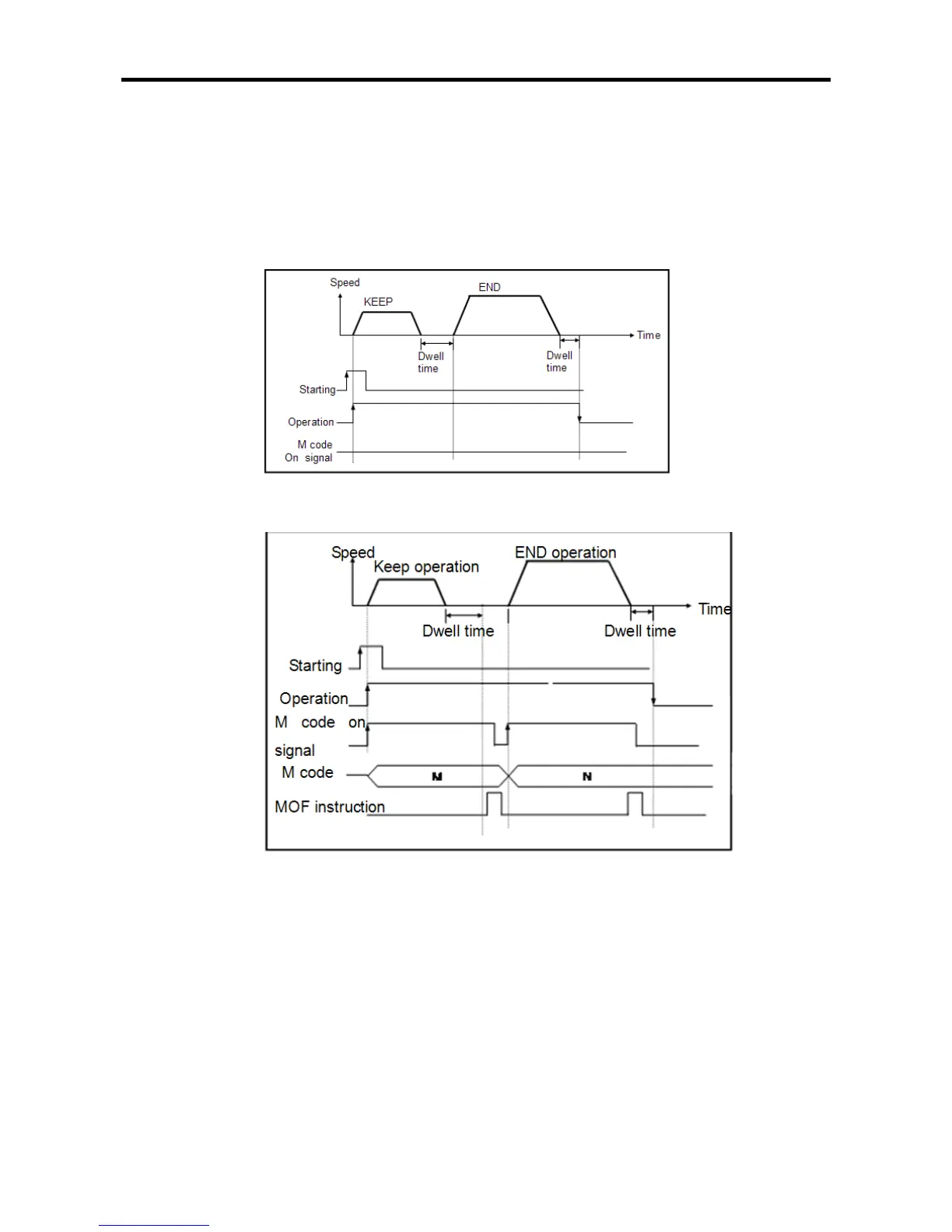

(a) NONE mode
•In case M code output mode is selected as NONE, though M code is set in operation data, M
code doesn’t occur like the following figure.
•If the user use this function, it can prohibit the M code function set per operation step,
simultaneously.
(b) WITH mode
• In case M code output mode is set as WITH, like the following figure, it outpus M code on signal
and M code number when each step runs.
< M code output timing in case of WITH mode >
(c) AFTER mode
• In case M code output mode is set as AFTER, like the following figure, if each operation of step
is completed, it outputs M code On signal and M code number.
