A4 + B4 (option 4 12 024 + 4 12 034)
• Top section including cylinder frame complete,
cylinder covers complete, piston rods complete,
gearbox for hydraulic pump station, hydraulic
pump station with lter unit, galleries with pipes
on engine control side and electronic engine
control computer
• Exhaust receiver with pipes
• Scavenge air receiver with galleries and pipes
• Turbocharger
• Frame box section including frame box com-
plete, connecting rods and galleries
• Crankshaft with wheels
• Bedplate with pipes and turning gear
• Remaining parts, stay bolts, auxiliary blowers,
etc.

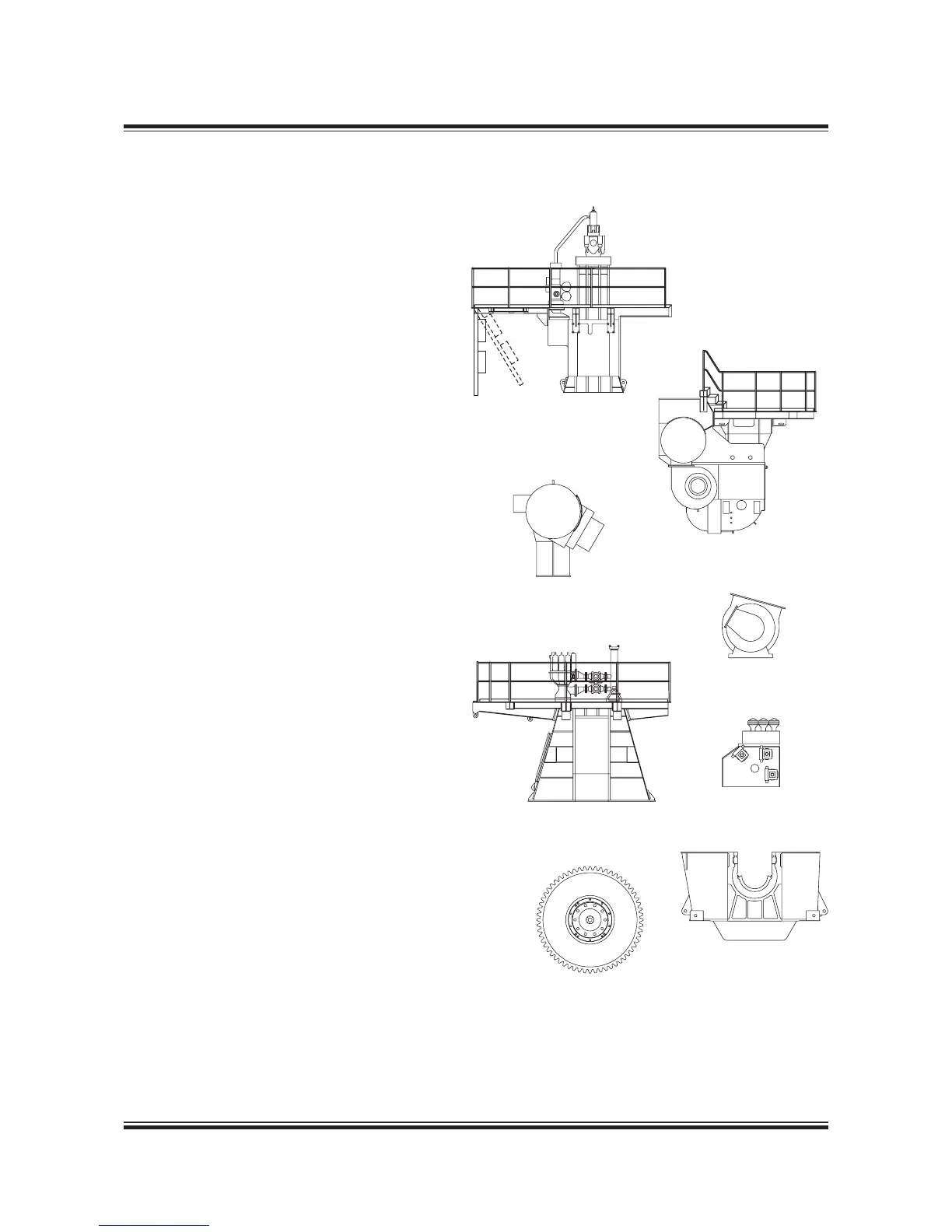

Top section
Scavenge air receiver
Exhaust receiver
Turbocharger
Frame box section
Bedplate section
Crankshaft section
178 52 041.1
Fig. 19.03.03: Dispatch pattern, engine with turbocharger on exhaust side (4 59 123)
