– Programming Manual 15. Motors test 103
15.
MOTORS TEST
This function allows viewing the instant value, maximum and minimum, of current
absorbed by the motors that actuate the balancing masses, while moving to the
selected direction.
The current input value is expressed in mA.
Manual operating mode.

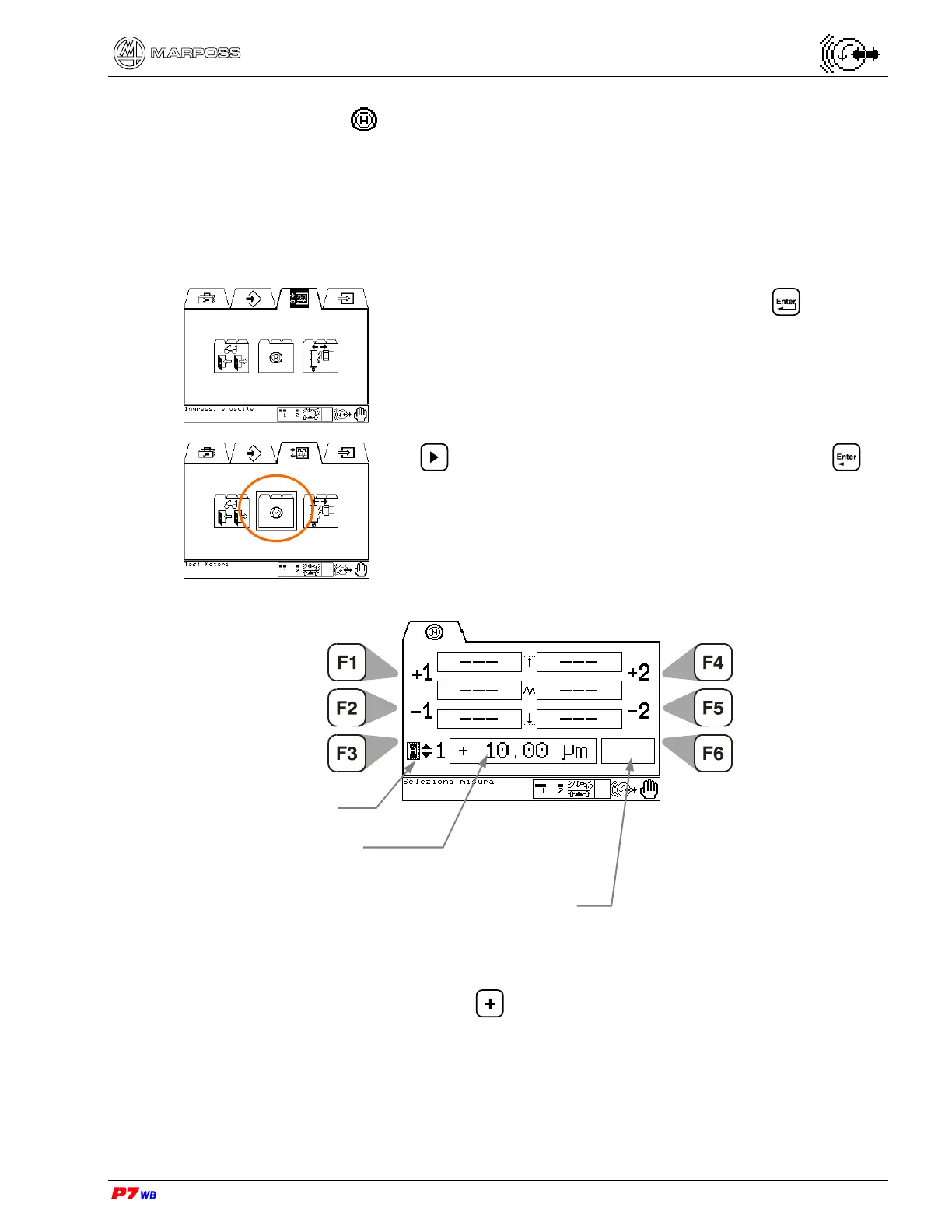

Select the Inputs and Outputs folder and press
Use to select the Motor Test sub-folder and press .
(1) Measurement selection: present only in the applications with two logical channels.
With the field highlighted, press to select the desired measurement.
(2) The vibration value can be displayed either as width (unit of measure "micron" or
"inch") or speed (unit of measure "mm/sec" or "inch/sec"). The display mode is
defined upon the application configuration.
Measurement selection (1)
Vibration value (2)
Motor of mass 1
backward
Motor of mass 1
forward
Motor of mass 2
forward
Motor of mass 2
backward
With Tx/Rx unit type “Compact” and “MINI CT” only.
Viewing of transmitter and receiver temperature (°C)
To Next Page
