13.4.3. Programming Gap control data
Page B4 of the “Programming” folder menu map (section 8.2, page 3).

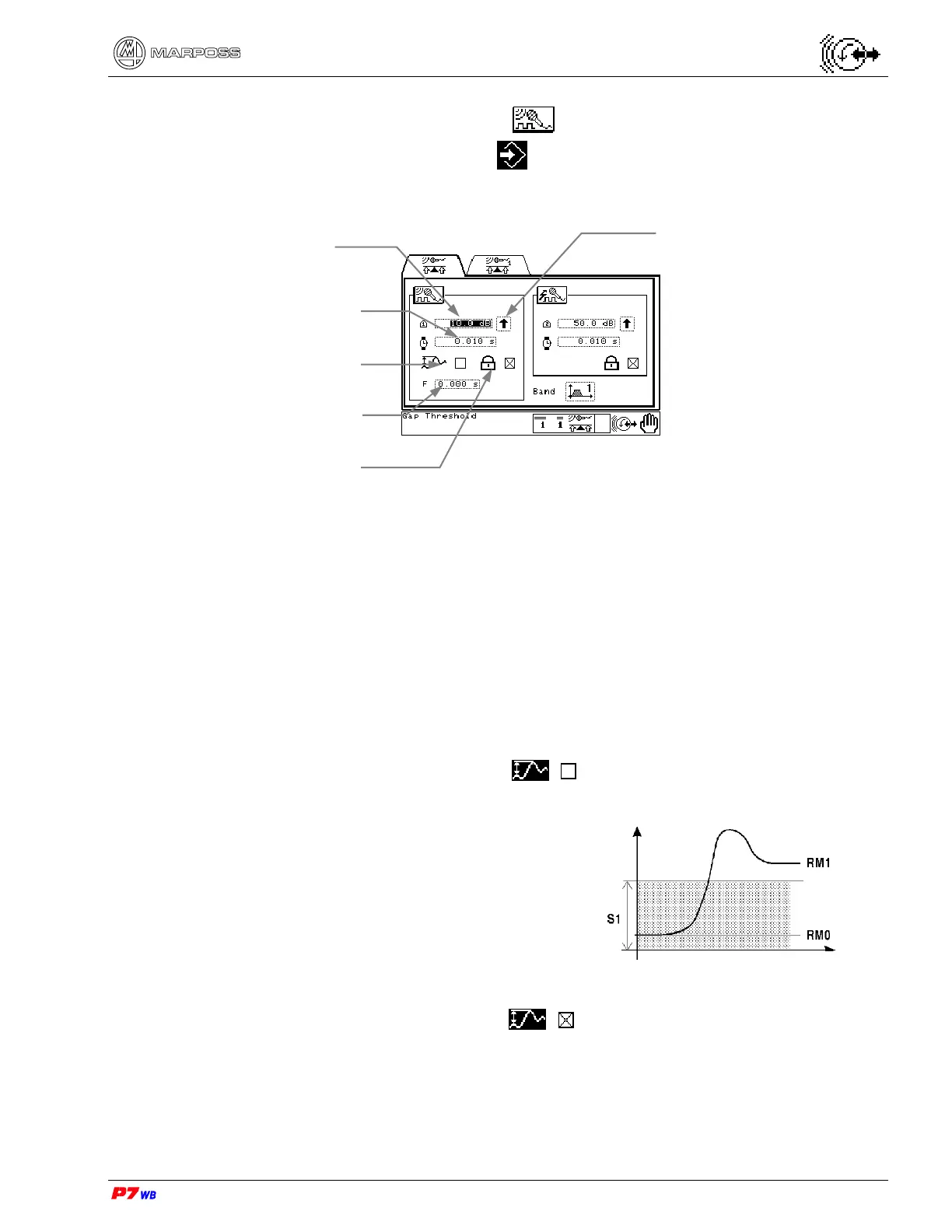

Gap control limit
Setting of trigger limit (S1) of Gap control.
To determine the value proceed as follows (Manual operating mode – Gap
environment):
 start the grinder observing the usual working conditions (grinding wheel and part
rotating, coolant on, etc).
 record the mean value of the background noise (RM0), with the wheel at rest
position (away from the workpiece).
 bring the wheel in proximity of the workpiece and record the mean noise value
(RM1) (without touching the workpiece).
In case of constant background noise ( programming) the value of the Gap
limit (S1) (absolute value) must be:
S1 = 0.75 x (RM1 - RM0) + RM0
In case of variable background noise ( programming) the value of the Gap
limit (S1) (incremental relative value) must be:
Gap control
trigger modality
Gap control limit
Delay on Gap control
limit
Reference of Gap control
limit
Gap control self-locking
noise
time
Value of the filter on the Gap
background noise
