– Programming Manual 10. Unit Set-up 45
2. Manual balancing with variable weights / variable angles (section 10.2.3,
page 3)
A determined number of holes is programmed in
the “Number of holes” datum. This allows getting
(F1 key) to the programming of the available weight
values, as described in section 18.1.3 “Weight
value”, page 3.
Note: For programming the data present in the page “Parameters for balancing with
weights”, see section 18.1 “Parameters for manual balancing with “, page 3.
10.2.1.

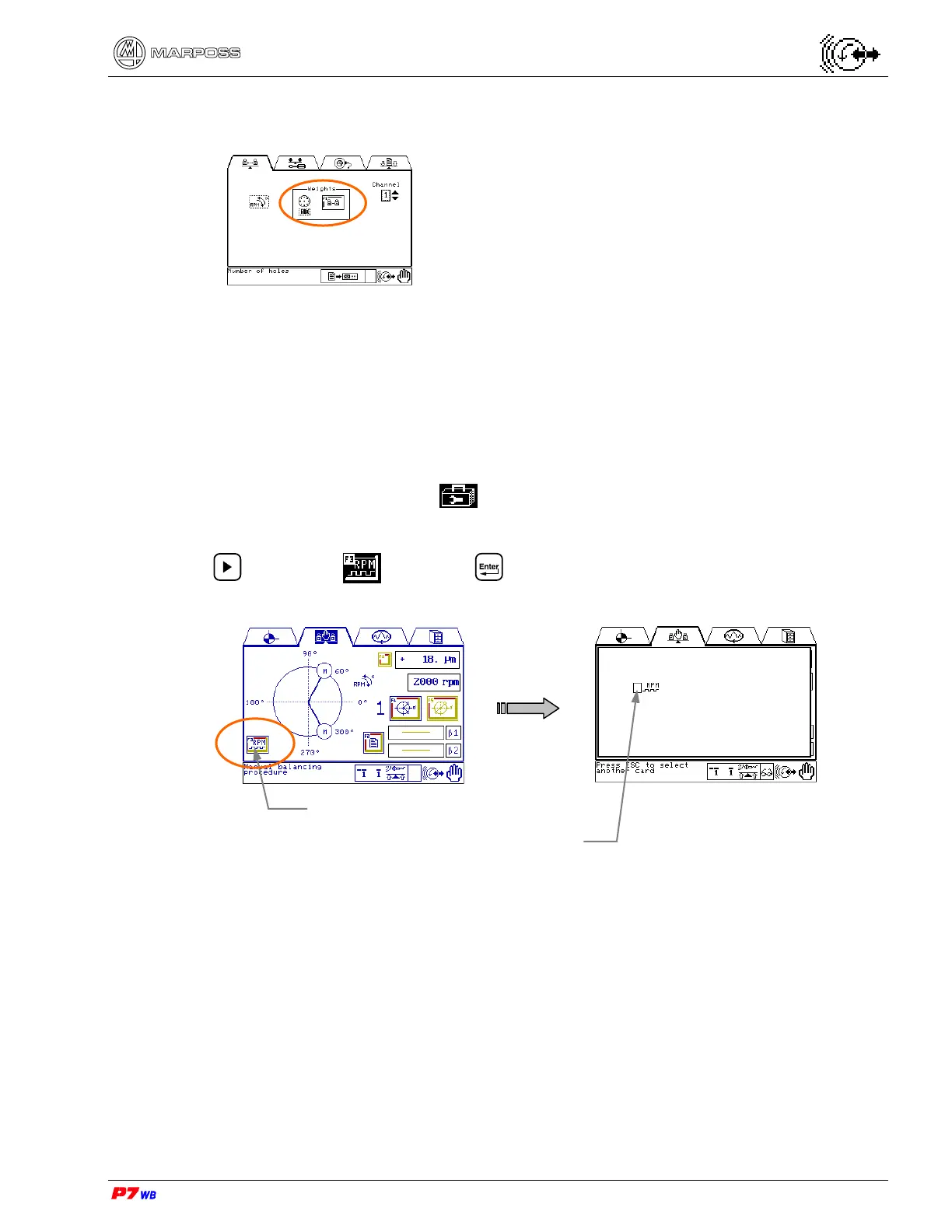

RPM sensor control
Page B8 of the “Utilities” folder menu map (section 8.1, page 3).
From the page Procedure of manual balancing with weights, press function key F3 or
use to highlight and press .
Virtual LED warns when the RPM sensor is aligned with the slot on the rotary portion
of the balancing head. This LED can be used to verify the efficiency of the RPM
sensor (LED on/off).
LED of RPM senso
RPM sensor control
