– Programming Manual 10. Unit Set-up 41
10.1.
Home position
The Home cycle consists in bringing the masses of the balancing head to neutral
position.
(1) Measurement selection: present only in the applications with two logical channels.
With the field highlighted, press to select the desired measurement (the
number of the corresponding physical channel is displayed).
(2) The vibration value can be displayed either as width (unit of measure "micron" or
"inch") or speed (unit of measure "mm/sec" or "inch/sec"). The display mode is
defined when configuring the application.
Two different modes are available for searching the Home position based on the type
of balancing head:
Type of Balancing Head
Flange sH
Spindle sH
Flange GAP sH
Spindle GAP sH
Static Home (wheel NOT rotating)
Flange
Spindle
Flange GAP
Spindle GAP
Dynamic Home (wheel rotating at a LOW
number of revolutions)
The type(s) of balancing head present in the current application is(are) indicated in
the following page:

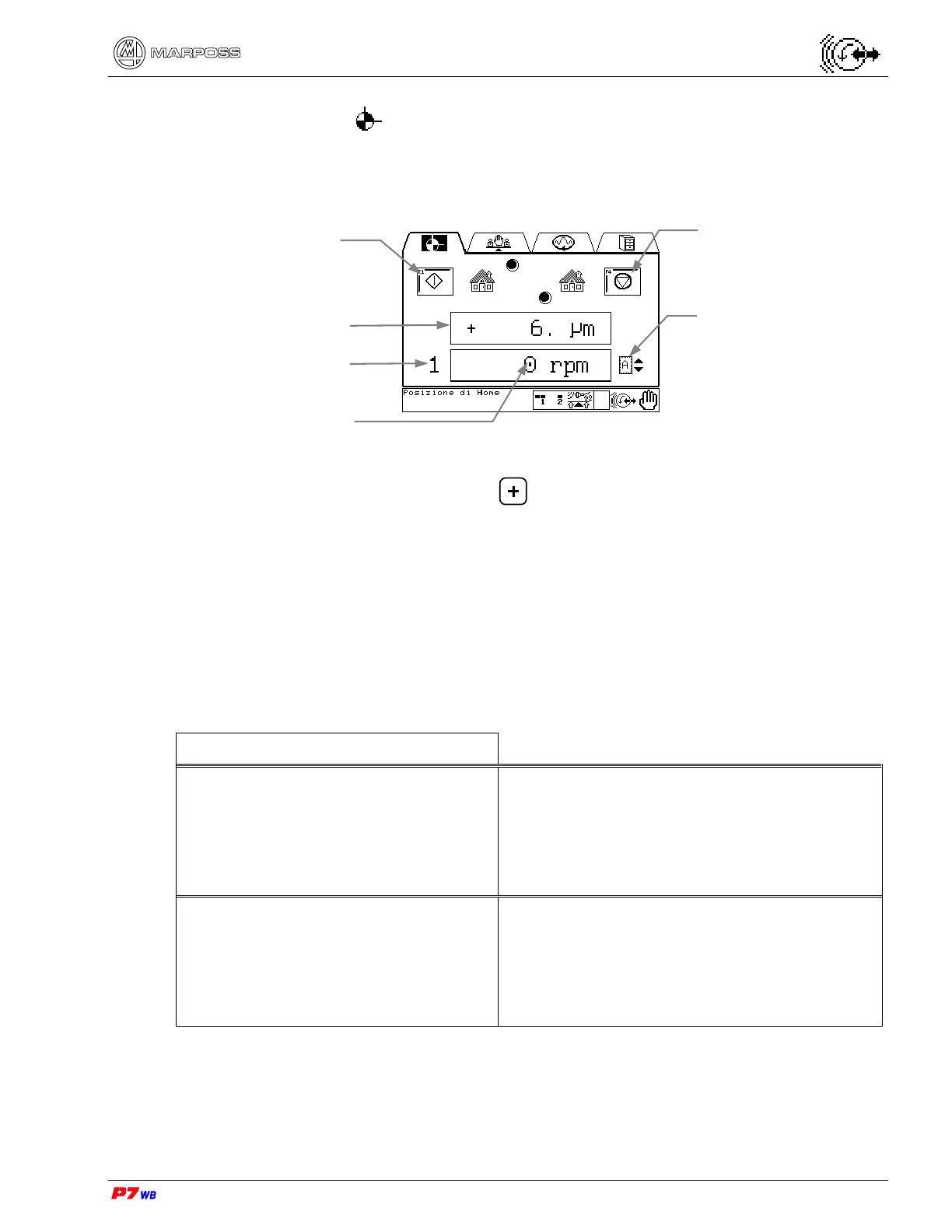

Measurement selection (1)
(logical channel)
Wheel rotation value
No. of physical channel
Start Home position
Stop Home position
Vibration value (2)
To Next Page
