marposs P7WB - Viewing Integrated Gap & Crash Data

– Programming Manual 12. View data 75

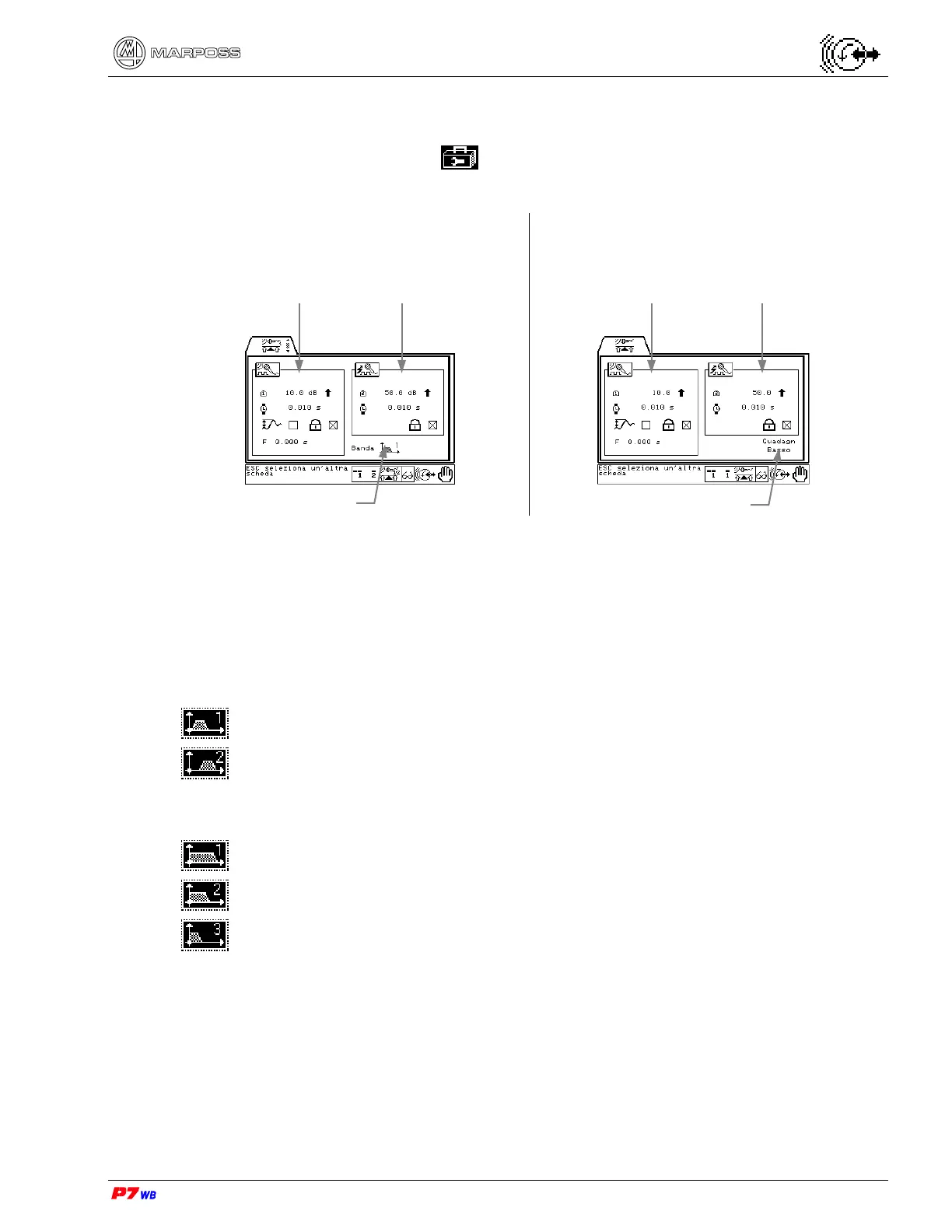

12.3. Viewing data of integrated Gap & Crash function
Page C4 of the “Utilities” folder menu map (section 8.1, page 3).
Type of receiver/transmitter unit: E78N/E82 or
Compact
Type of receiver/transmitter unit: MINI CT
Frequency band
Active frequency band. The following icons indicate, with reference to the balancing
head used, the different frequency bands that may be used for filtering the contact
noise.
FTHG / STHG balancing heads (type of receiver/transmitter unit: E78N/E82)
Band 1: 50 to 100 KHz
Band 2: 100 to 200 KHz
STG balancing heads (type of receiver/transmitter unit: compact)
Band (filter) 1: filtering of the signal already demodulated to about 320 Hz.
Band (filter) 2: filtering of the signal already demodulated to about 160 Hz.
Band (filter) 3: filtering of the signal already demodulated to about 80 Hz.
Gain
Active gain value (High / Medium / Low).
Gain = amplification factor on the noise measure acquisition.
Frequency band
Area of Gap
control data
Gain
Area of Crash
control data
Area of Crash
control data
Area of Gap
control data
