Below there are reported the specific data for each control. If you want to change the
data value act as follows:
• press to highlight the desired field
• press or to display the desired value
• press to confirm.
The change just made is displayed in real time.

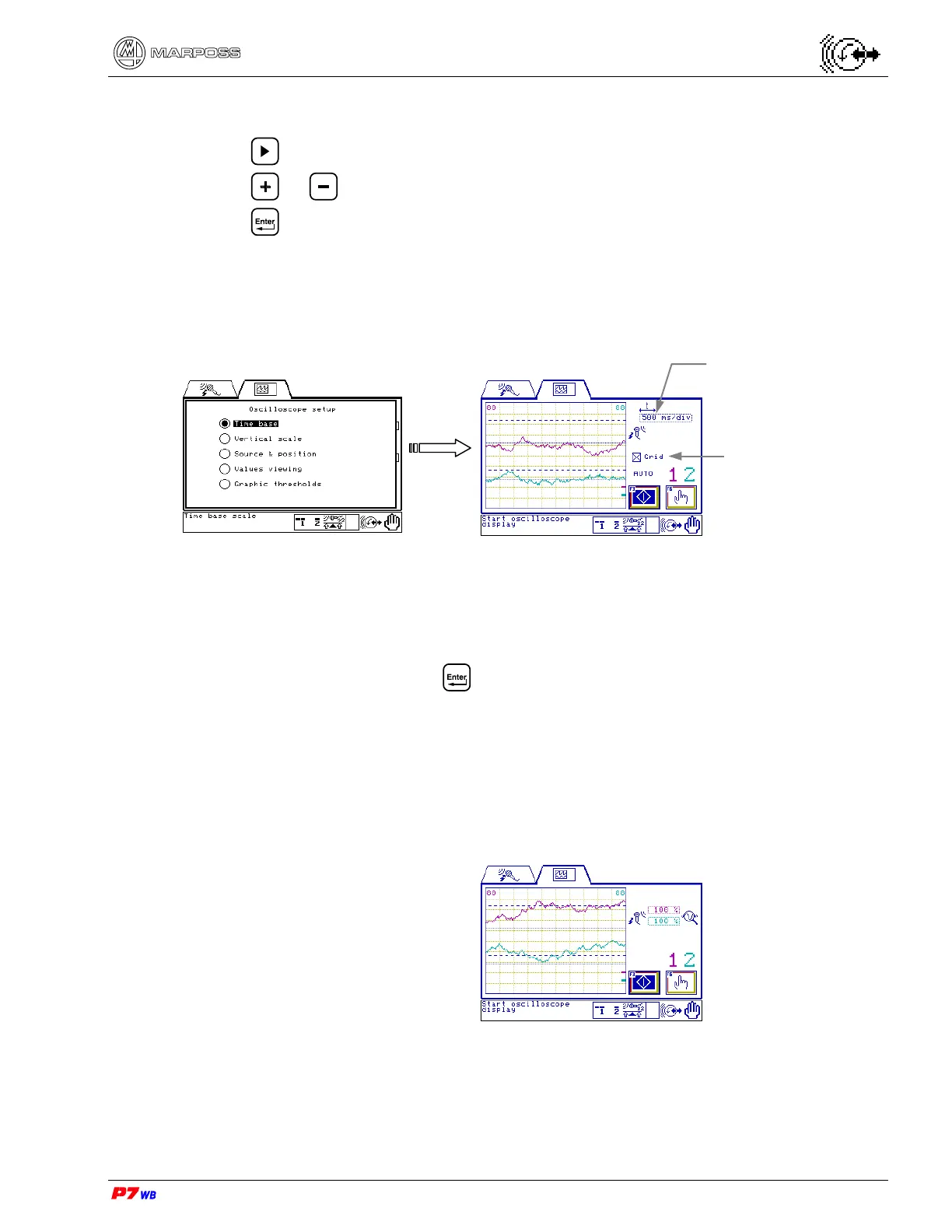

11.6.1. Time base
Time base definition, grid display enable.
Time base scale
Seconds/Milliseconds per screen window (totaling 10 windows).
Admissible values: 1 / 2 / 5 / 10 sec/window; 50 / 100 / 200 / 500 msec/window
Grid enable
Enable or disable grid display.
With the field highlighted, press to define the status of the datum.
 Grid grid display not enabled
 Grid grid display enabled
11.6.2. Vertical scale
Vertical zoom definition.
Time base scale
Grid enable
