80 13. Programming – Programming Manual

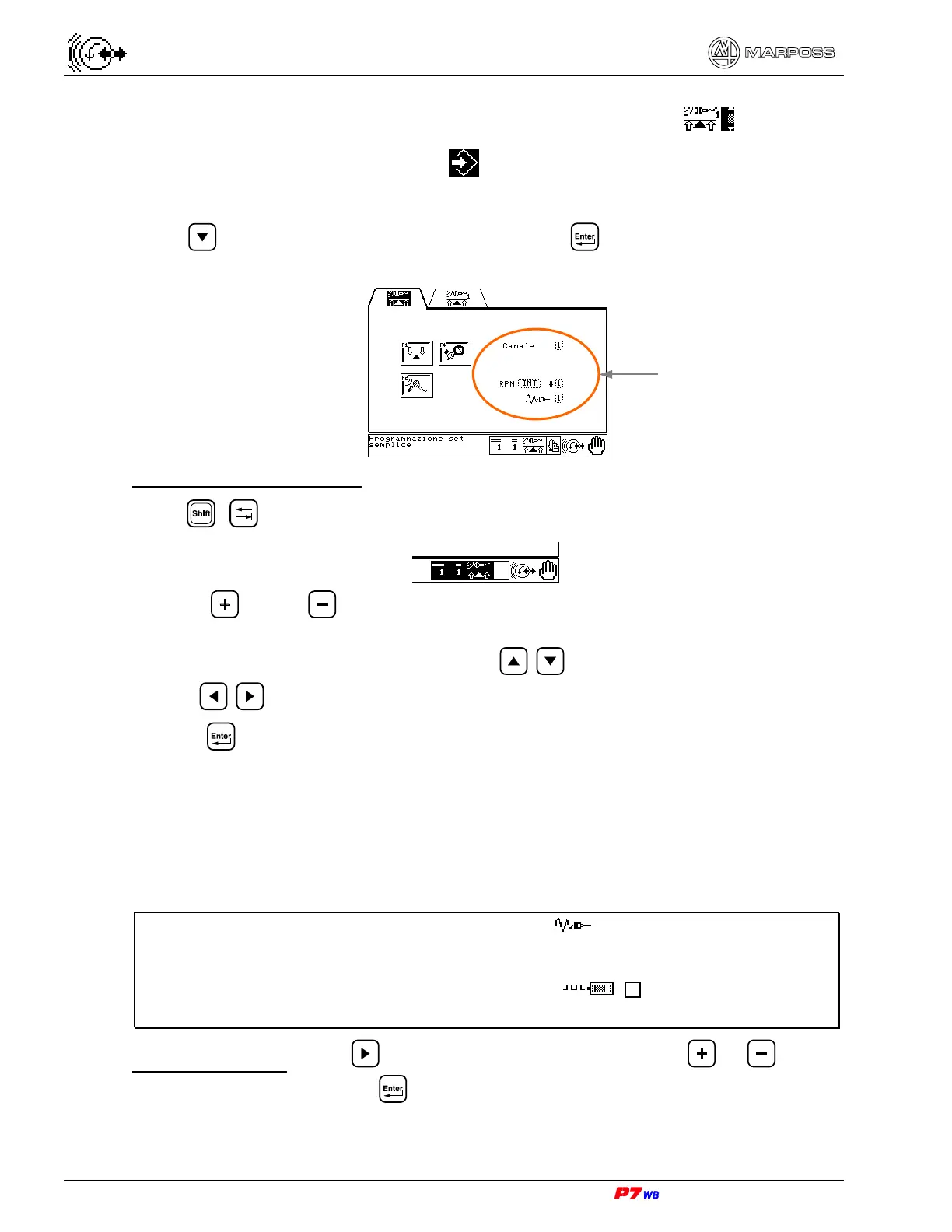

13.2. Programming a double set (2 logical channels)
Page C2 of the “Programming” folder menu map (section 8.2, page 3).
This page allows defining the source of the RPM signal for each logical channel.
Press to select Channel 1 or Channel 2; press to confirm the selection and
access the page.
Set (Wheel/Cycle) selection
Press + to highlight the wheel/cycle selection area:
• use or to select a set (wheel/cycle) already defined
or
define a new set (wheel/cycle): use keys / to define the wheel number, and
keys / to define the cycle number.
• press .
The following data must be programmed:
RPM Source of the RPM signal: INT= internal signal (rpm sensor on balancing
head); EXT= external signal (external sensor).
# Number of the physical channel of RPM signal (the desired RPM sensor
is used independently for each balancing head).
Note: The programming of the RPM data and must be consistent with the
hardware programming (see section 17.1, page 3), otherwise "Error 5 –
Hardware RPM Ext. not present" is displayed at the exit of programming
(e.g. external RPM sensor not present : the programming of
RPM=EXT is not valid).
Data programming: press to highlight the involved field, press or to view
the desired value, then press to confirm.
Data relevant to the set
