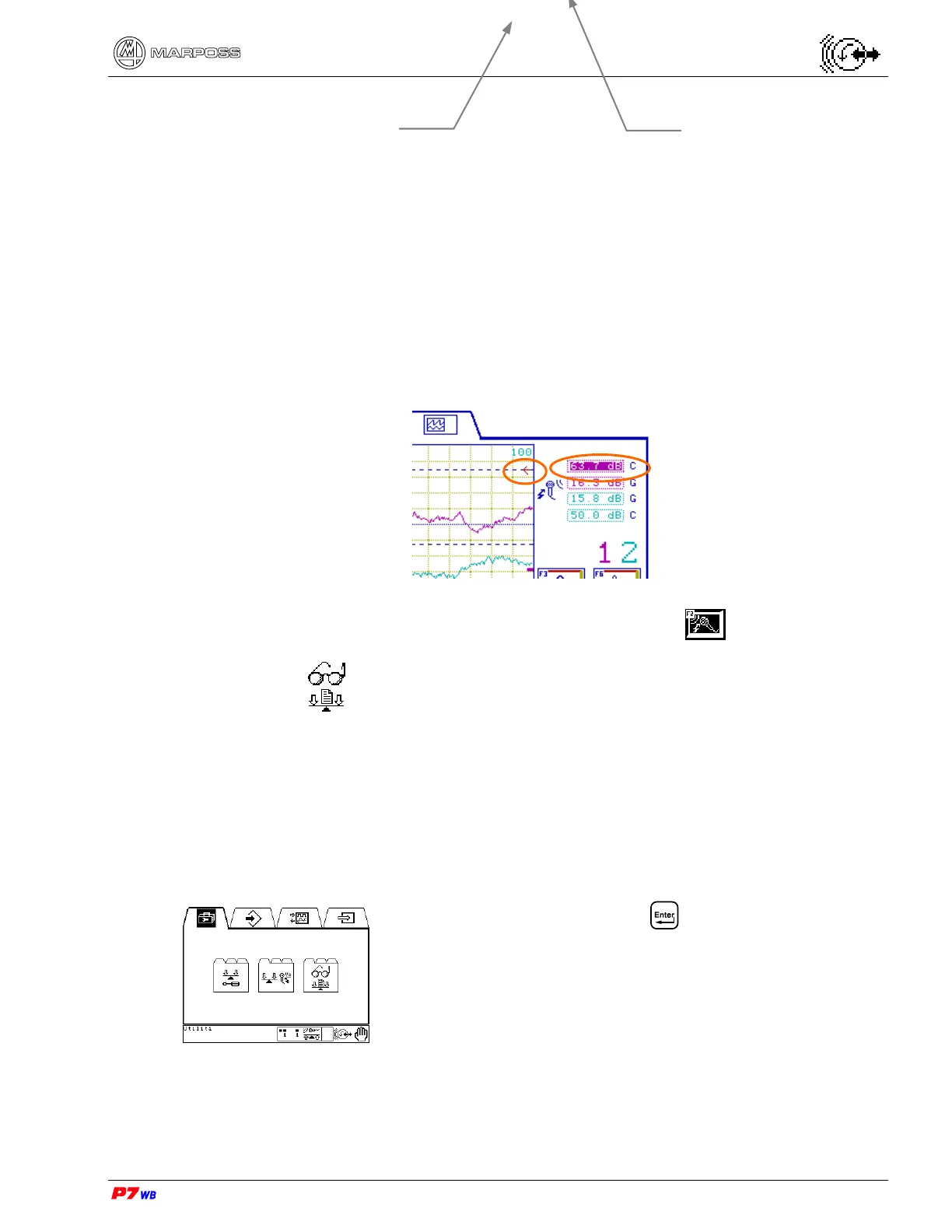

– Programming Manual 12. View data 71
1
Crash threshold value (C) per channel 1
2
Gap threshold value (G) for channel 1
3
Gap threshold value (G) for channel 2
4
Crash threshold value (C) for channel 2
The thresholds can be programmed between 0.0 and 99.9 decibel (0.1 db resolution).
With color display the trace and the corresponding thresholds have the same color.
The selected threshold (under modification) is indicated on the screen right-hand side
by an arrow (see figure)
The modification of the threshold value is reported on the Gap&Crash programming
page (section 13.4 “Programming the integrated Gap&Crash “, page 3).
12.
VIEW DATA
Manual operating mode.
Select the Utilities folder and press
Graphic representation of
channel 1 Gap&Crash
thresholds
Graphic representation of
channel 2 Gap&Crash
thresholds
To Next Page
